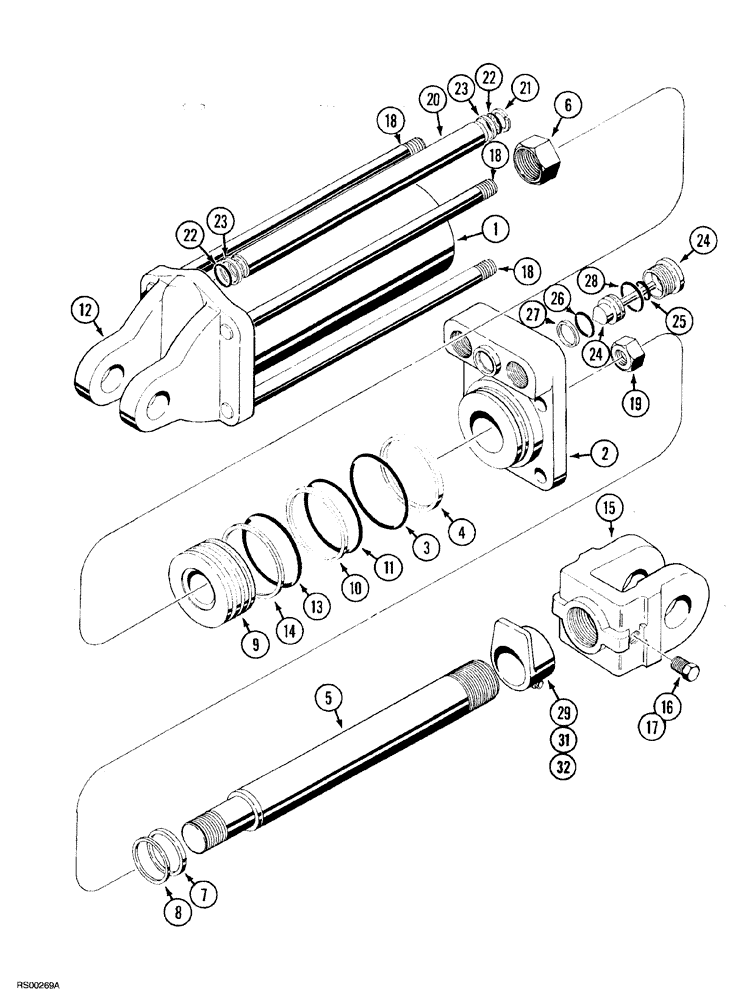

Запчасти Case IH 5700 (8-042) - CYLINDER ASSEMBLY - 1263474C91, 3-1/2 ID X 8 INCH STROKE (08) - HYDRAULICS

1263474C91

CYLINDER ASSY.

3-1/2 (89) ID x 8 inch (203 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1255096C1

END

GLAND cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING, 3-1/4 ID x 3-1/2 inch O.D., gland, part of seal kit 79978C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring, part of seal kit 79978C2

1шт.

1272813C1

ROD

piston

1шт.

5

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 79978C2

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL piston rod, part of seal kit 79978C2

1шт.

9

145422C2

PISTON

cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL piston, part of seal kit 79978C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, 3 ID x 3-3/16 inch O.D., backup, piston seal, part of seal kit 79978C2

1шт.

12

145354C1

HEAD

cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, 3-1/4 ID x 3-1/2 inch O.D., cylinder head, part of seal kit 79978C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING backup, cylinder head O-ring, part of seal kit 79978C2

1шт.

15

1282366C1

RAM FORK

CLEVIS piston rod

1шт.

16

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

17

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert

1шт.

18

145250C1

BOLT,5/8" - 11 x 345mm

cylinder tie

4шт.

19

425-1010

NUT,5/8"-11, G5

4шт.

20

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING, 9/16 ID x 3/4 inch O.D., return tube, part of seal kit 1272597C91

2шт.

23

NSS

NOT SOLD SEPARAT

RING backup, return tube O-nng, part of seal kit 1272597C91

2шт.

1260968C91

VALVE

ASSEMBLY, stop limiting

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE stop limiting

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING, 3/16 ID x 5/16 inch O.D., valve stem, part of seal kit 1272597C91

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING, 11/16 ID x 7/8 inch O.D., valve to housing, part of seal kit 1272597C91

1шт.

27

NSS

NOT SOLD SEPARAT

RING backup, valve O-ring, part of seal kit 1272597C91

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING, 3/4 inch tube O.D., valve retainer to gland, part of seal kit 1272597C91

1шт.

29

224581C3

ARM

STOP depth, cylinder

1шт.

1263435C91

ADJUSTMENT SCREW

adjusting

1шт.

31

NSS

NOT SOLD SEPARAT

LEVER cylinder adjusting, not shown

1шт.

32

425-145

JAM NUT,Jam, 5/16"-18, G5

hex jam, 5/16 inch NC, not shown

1шт.

79978C2

SEAL KIT

includes Refs. 3, 4, 7, 8, 10, and 11

1шт.

1272597C91

KIT

seal replacement, includes Refs. 22, 23, 25, 26, 27, and 28

1шт.
