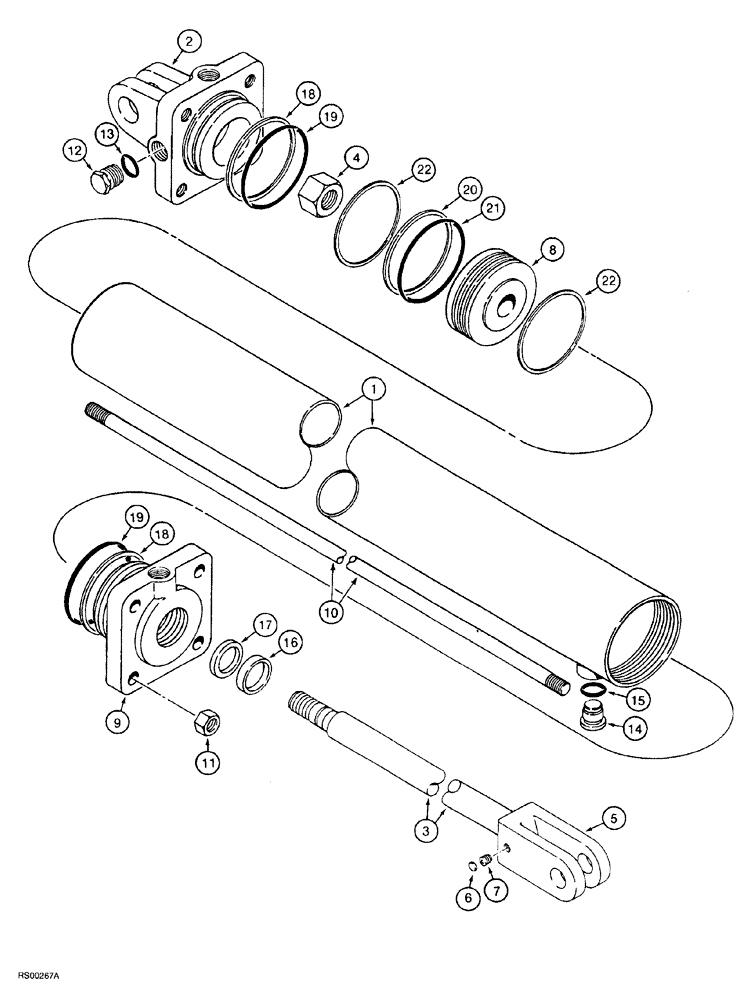

Запчасти Case IH 5700 (8-038) - CYLINDER ASSEMBLY - 1282322C93, 3-1/4 ID X 8 INCH STROKE (08) - HYDRAULICS

1282322C93

CYLINDER

ASSEMBLY, 3-1/4 (83) ID x 8 inch (203 mm) stroke

1шт.

87423770R

REMAN-HYD CYLINDER

5600, 5700 both CASE IH CHISEL PLOW, Reman for New P/N 1282322C93

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

1978384C1

HYD TUBE

cylinder

1шт.

2

1286314C1

HEAD

GLAND cylinder

1шт.

3

145231C1

PISTON ROD

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145233C1

CLEVIS,1/4" - 12

rod end

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert, nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

92519C1

PISTON

cylinder

1шт.

9

1286313C1

HEAD

GLAND cylinder

1шт.

10

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD BOLT, cylinder

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit 80116C2

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit 80116C2

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 80116C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL piston rod, part of seal kit 80116C2

1шт.

18

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring, part of seal kit 80116C2

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING end cap and gland, part of seal kit 80116C2

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL piston, part of seal kit 80116C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING piston, part of seal kit 80116C2

1шт.

22

NSS

NOT SOLD SEPARAT

RING wear, piston, part of seal kit 80116C2

2шт.

80116C2

GASKET KIT

seal, includes Refs. 13 and 15 thru 22

1шт.
