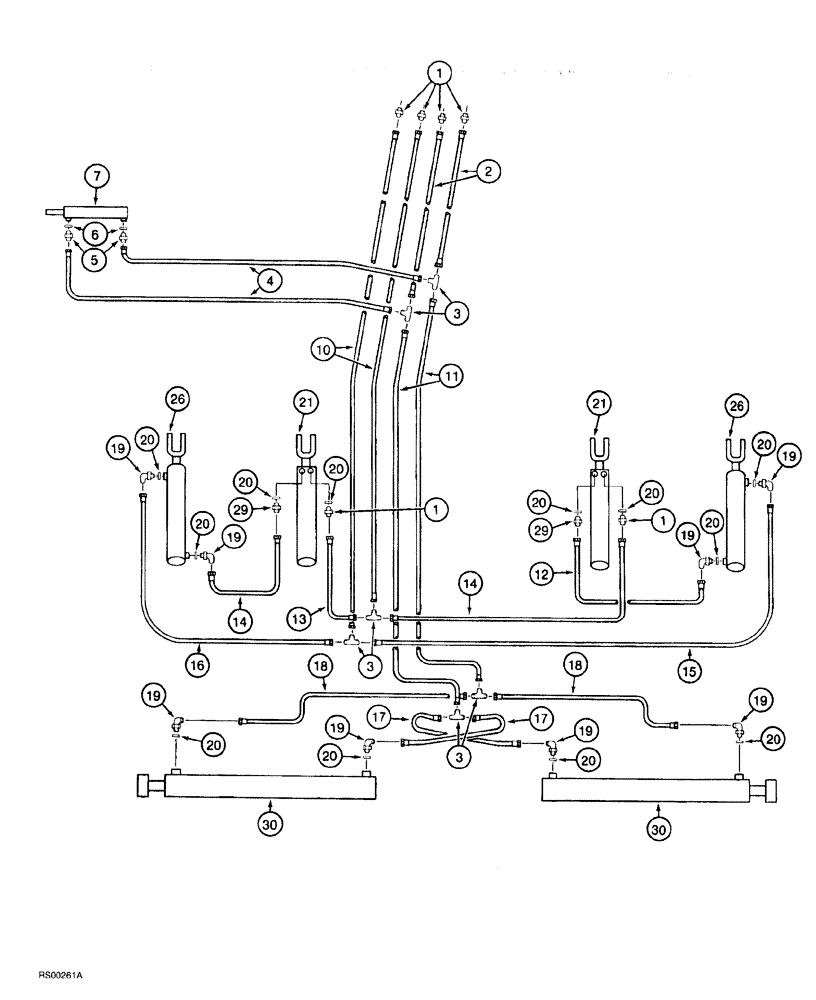

Запчасти Case IH 5700 (8-026) - DEPTH CONTROL & WING LIFT HYD CIRCUITS, NON LEVEL LIFT MODELS, SINGLE FOLD, 33 THRU 39 FOOT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

6шт.

2

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

2шт.

3

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

6шт.

4

1284278C1

HYDRAULIC HOSE

41 inch (1041 mm) long

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.

7

1286364C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke (See Fig. 8-74)

1шт.

8

439-5848

HEADED PIN,1/2" x 3", G5

headed, 1/2 x 3 inch, cylinder mounting, not shown

2шт.

9

432-1216

COTTER PIN,3/16" x 1"

Not shown

2шт.

10

133933C2

HYDRAULIC HOSE

260 inch (6604 mm) long

2шт.

11

1301350C2

HYDRAULIC HOSE

120 inch (3048 mm) long

2шт.

12

129671C2

HYDRAULIC HOSE

105 inch (2667 mm) long

1шт.

13

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

14

129759C2

HYDRAULIC HOSE

180 inch (4572 mm) long

2шт.

15

133933C2

HYDRAULIC HOSE

260 inch (6604 mm) long

1шт.

16

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

210 inch (5334 mm) long

1шт.

17

810604C1

HYDRAULIC HOSE

29 inch (735 mm) long

2шт.

18

812382C1

HYDRAULIC HOSE

50 inch (1270 mm) long

2шт.

19

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

8шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

12шт.

21

149950C92

CYLINDER

ASSEMBLY, 4-1/4 (108) ID x 8 inch 203 mm) stroke (See Fig. 8-50)

2шт.

24

810751C1

PIN

1 x 3-1/2 inch long, cylinder mounting, not shown

4шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

Not shown

4шт.

26

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke (See Fig. 8-48)

2шт.

27

810751C1

PIN

1 x 3-1/2 inch long, cylinder mounting, not shown

4шт.

28

432-1624

COTTER PIN,1/4" x 1 1/2"

Not shown

4шт.

29

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

30

224795C91

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke (See Fig. 8-66)

2шт.

31

811962C1

PIN

cylinder mounting, rod end, not shown

2шт.

32

810751C1

PIN

1 x 3-1/2 inch long, cylinder mounting, closed end, not shown

2шт.

33

614451R1

WASHER

flat, 1-1/32 x 1-3/4 x 7/64 inch, special, not shown

8шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

Not shown

6шт.

35

M73125

SPACER,1" Pipe x 3/8"

SPACER cylinder rod , not shown

4шт.

36

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Not shown

18шт.

37

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT round head square neck, 3/8 NC x 1 inch, clamp retaining, not shown

10шт.

38

492-11038

LOCK WASHER,3/8"

Not shown

10шт.

39

425-106

NUT,3/8"-16, Cl 5

Not shown

10шт.

40

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

1шт.
