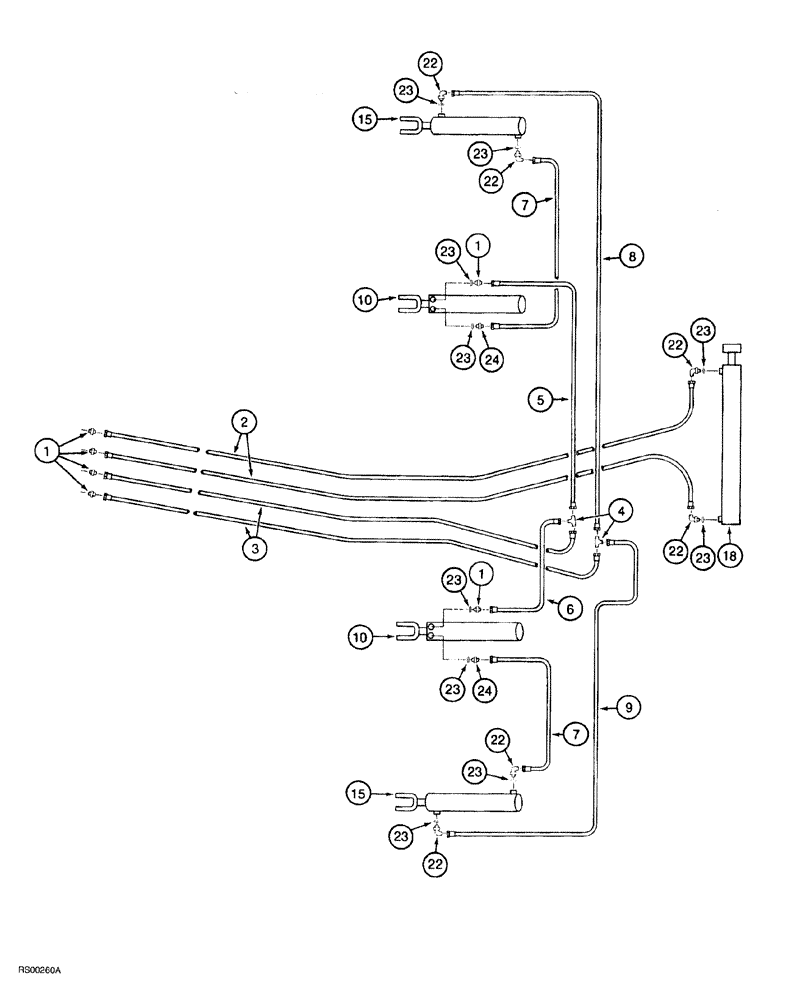

Запчасти Case IH 5700 (8-024) - DEPTH CONTROL & WING LIFT HYD CIRCUITS, NON LEVEL LIFT MODELS, SINGLE FOLD, 25 THRU 31 FOOT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

6шт.

2

1284266C1

HYDRAULIC HOSE

305 inch (7747 mm) long

2шт.

3

133933C2

HYDRAULIC HOSE

260 inch (6604 mm) long

2шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

adjustable, 9/16-18 inch flare

2шт.

5

129671C2

HYDRAULIC HOSE

105 inch (2667 mm) long

1шт.

6

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

7

139655C2

HYDRAULIC HOSE

155 inch (3937 mm) long

2шт.

8

1284314C1

HYDRAULIC HOSE

235 inch (5969 mm) long

1шт.

9

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

185 inch (4700 mm) long

1шт.

10

149950C92

CYLINDER

ASSEMBLY, 4-1/4 (108) ID x 8 inch 203 mm) stroke (See Fig. 8-50)

2шт.

13

810751C1

PIN

1 x 3-1/2 inch long, cylinder mounting, not shown

4шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

Not shown

4шт.

15

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke (See Fig. 8-48)

2шт.

16

810751C1

PIN

1 x 3-1/2 inch long, cylinder mounting, not shown

4шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Not shown

4шт.

18

1282421C91

CYLINDER ASSY.

4-1/2 (114) ID x 34 inch (864mm) stroke (See Fig. 8-72)

1шт.

19

810048C1

PIN

lift cylinder mounting, not shown

2шт.

20

432-1640

COTTER PIN,1/4" x 2 1/2"

not shown 1/4" x 2 1/2"

4шт.

21

495-81191

WASHER,1 5/32" x 2" x .060"

flat, 1-5/32 x 2 x 3/64 inch, not shown

4шт.

22

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

6шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

10шт.

24

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

25

129083R1

CLAMP

P-type, 5/8 inch ID, not shown

20шт.

26

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT round head square neck, 3/8 NC x 1 inch, clamp retaining, not shown

10шт.

27

492-11038

LOCK WASHER,3/8"

Not shown

10шт.

28

425-106

NUT,3/8"-16, Cl 5

Not shown

10шт.

30

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch, hoses, heavy, not shown

12шт.
