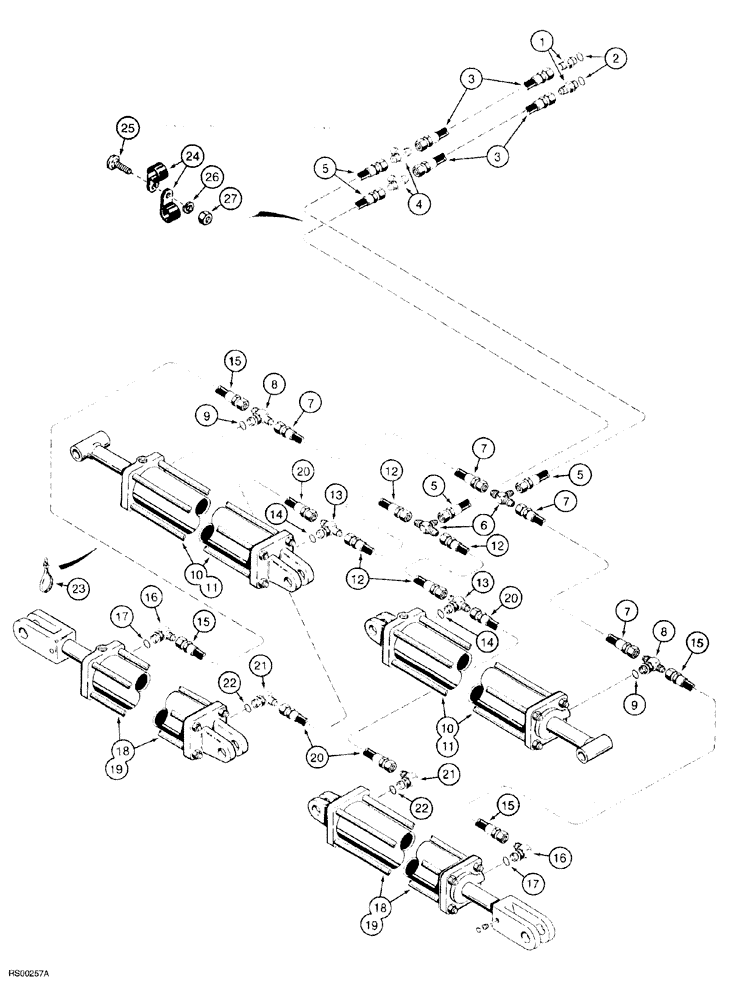

Запчасти Case IH 5700 (8-018) - WING LIFT HYDRAULIC CIRCUIT, LEVEL LIFT MODELS, DOUBLE FOLD, 41 FOOT THROUGH 53 FOOT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

129765C2

HYDRAULIC HOSE

200 inch (5080 mm) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

2шт.

5

1284369C1

HYDRAULIC HOSE

130 inch (3300 mm) long

2шт.

6

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

adjustable, 9/16-18 inch flare

2шт.

7

129908C1

HYDRAULIC HOSE

55 inch (1397 mm) long

2шт.

8

1284157C1

TEE,9/16"-18, 37 Degree x 3/4"-16, O-Ring Br

adjustable, special

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

224795C92

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke (Iowa Industrial Hydrauhcs)(41 foot wide)(See Fig. 8-66)

2шт.

10

810662C91

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke (Prince)(41 foot wide)(See Fig. 8-68)

2шт.

11

1954089C1

CYLINDER

ASSEMBLY, 4-1/2 (114) ID x 34 inch (864 mm) stroke (47 foot through 53 foot wide)(See Fig. 8-70)

2шт.

12

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

2шт.

13

1284157C1

TEE,9/16"-18, 37 Degree x 3/4"-16, O-Ring Br

adjustable, special

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

15

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

150 inch (3810 mm) long

2шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY, 3-1/2 (89) ID x 16 inch (406 mm) stroke (41 foot wide)(See Fig. 8-52)

2шт.

18

1272149C92R

REMAN-HYD CYLINDER

5600, 5700, Both CASE IH CHISEL PLOW, ASSEMBLY

2шт.

18

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

19

1286452C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 406.4mm Stroke

5 (127) ID x 16 inch (406 mm) stroke (47 foot through 53 foot wide)(See Fig. 8-56)

2шт.

20

97647C1

HYDRAULIC HOSE,12.70 mm ID x 4318.00 mm, SAE 100 R1

2шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.

24

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P-type, 7/16 inch ID

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

25

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.
