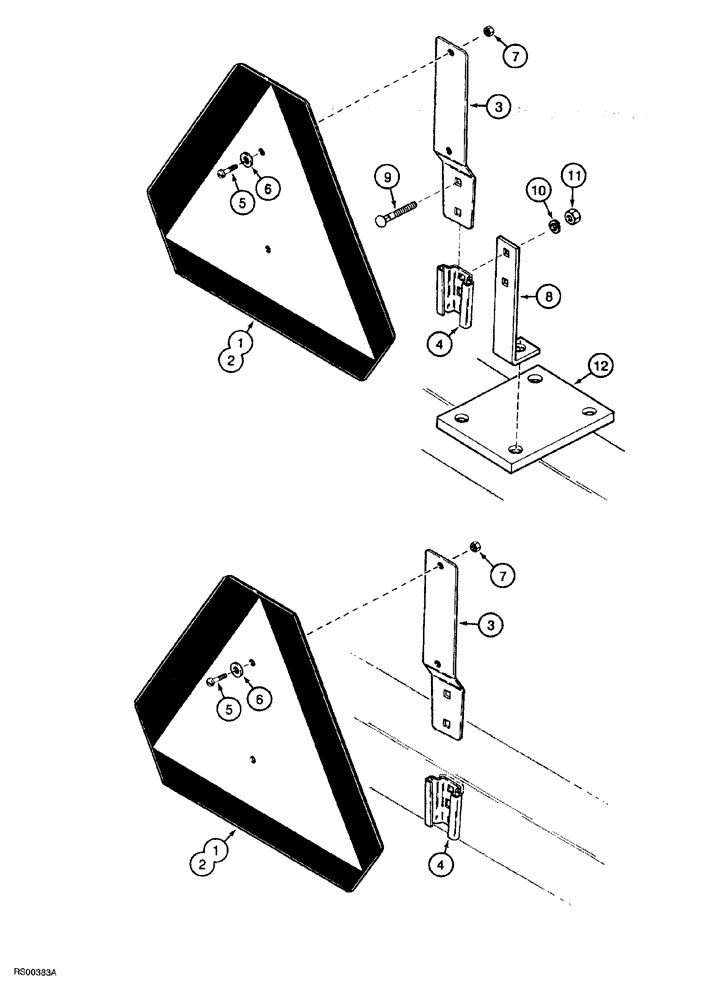

Запчасти Case IH 5700 (9-194) - SLOW MOVING VEHICLE EMBLEM, ALL LEVEL LIFT MODELS (18) - MISCELLANEOUS

1

NSS

NOT SOLD SEPARAT

PLATE slow moving vehicle emblem

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL SMV emblem

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET slow moving vehicle emblem mounting, long

1шт.

4

A59457

BRACKET

mounting, if used

1шт.

5

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

6

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

flat, 13/64 x 1/2 x 3/64 inch

2шт.

7

225-14110

NUT,#10-24

2шт.

8

811324C1

SUPPORT

BRACKET, L-shaped, shank mounted, if used

1шт.

9

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

10

492-11031

LOCK WASHER,5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

1284069C1

PLATE

clamping, use existing hardware

1шт.
