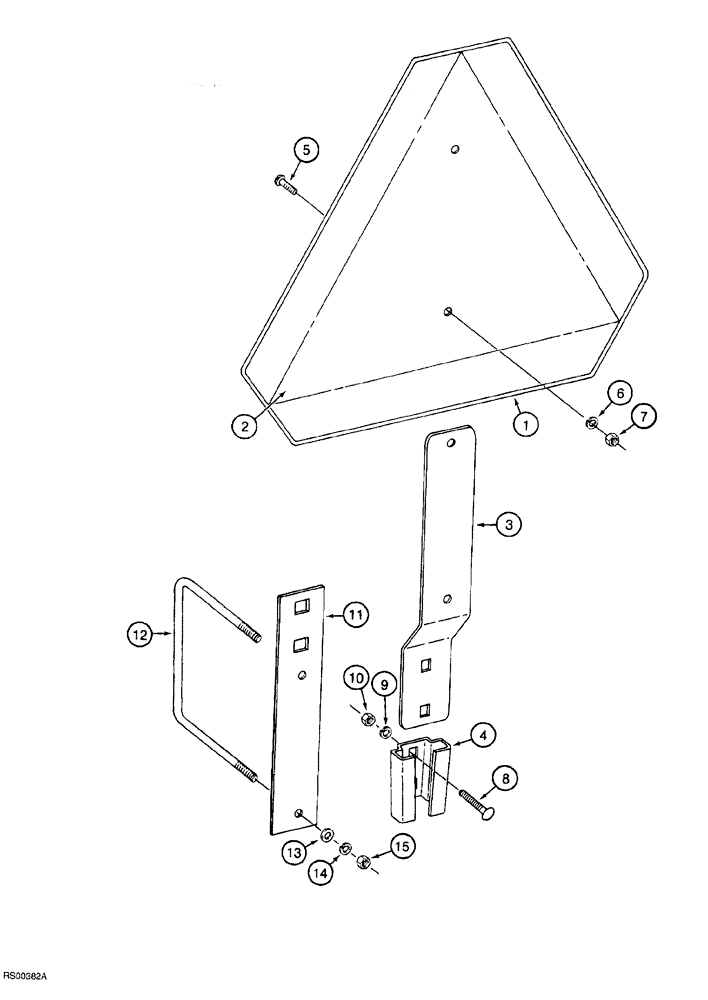

Запчасти Case IH 5700 (9-192) - SLOW MOVING VEHICLE EMBLEM, ALL NON LEVEL LIFT MODELS (18) - MISCELLANEOUS

1

NSS

NOT SOLD SEPARAT

PLATE slow moving vehicle emblem

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL SMV emblem

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET slow moving vehicle emblem mounting, long

1шт.

4

A59457

BRACKET

mounting

1шт.

5

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

6

607893R1

WASHER

flat, 13/64 x 1/2 x 3/64 inch

2шт.

7

225-14110

NUT,#10-24

2шт.

8

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

608328R1

BAR

slow moving vehicle emblem mounting

1шт.

12

810099C1

BOLT,U, 1/4" - 20 x 4.75"

U, mounting bar

1шт.

13

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

flat, 9/32 x 47/64 x 1/16 inch

2шт.

14

492-11025

LOCK WASHER,1/4"

2шт.

15

425-104

NUT,1/4"-20, Cl 5

2шт.
