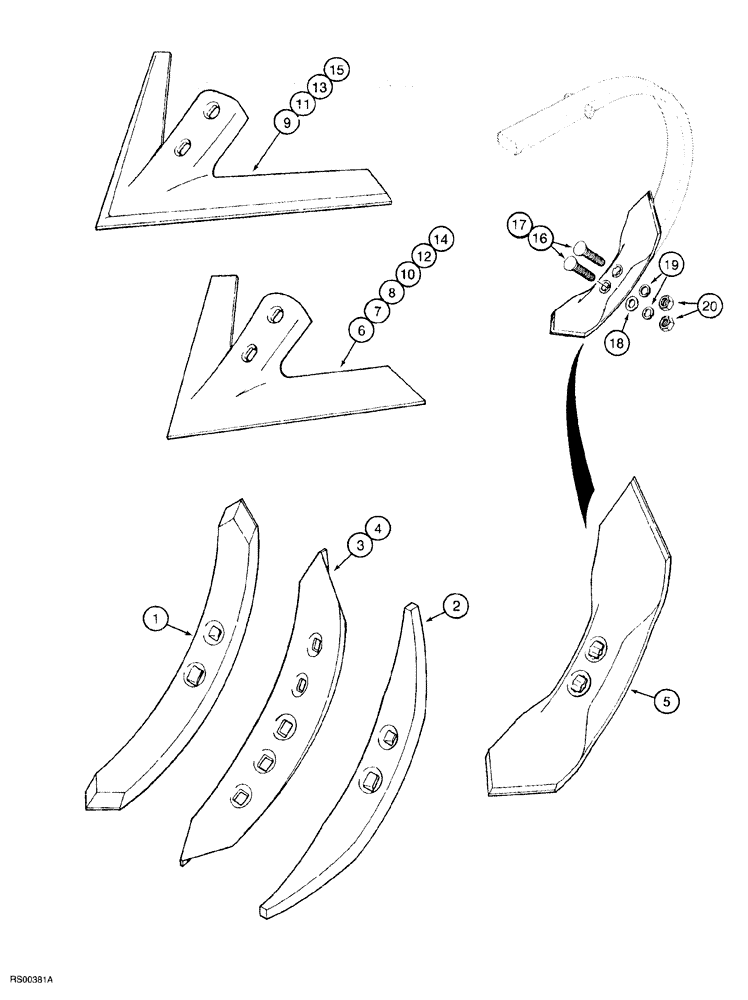

Запчасти Case IH 5700 (9-190) - GROUND WORKING TOOLS (18) - MISCELLANEOUS

1

601986R1

POINT

reversible chisel, 2 inch (51 mm) wide

1шт.

2

602594R1

POINT

2 inch (51 mm) wide

1шт.

3

594545R1

SHOVEL

3 inch (76 mm) wide, twisted, left hand

1шт.

4

594546R1

SHOVEL

3 inch (76 mm) wide, twisted, right hand

1шт.

5

602595R2

TIP

SHOVEL, 4-1/2 inch (114 mm) wide

1шт.

6

1547105C1

SWEEP

8" 47° From Ground Line

1шт.

7

1547106C1

SWEEP

10" 47° From Ground Line

1шт.

8

1547107C1

SWEEP

12" 47° From Ground Line

1шт.

9

602257R3

TOOTH

SWEEP, 12 inch (305 mm) wide, x 5/16 inch thick

1шт.

10

1547108C1

SWEEP

14" 47° From Ground Line

1шт.

11

601988R3

SWEEP

14 inch (356 mm) wide, x 5/16 inch thick

1шт.

12

1547109C1

SWEEP

16" 47° From Ground Line

1шт.

13

602207R3

TOOTH

SWEEP, 16 inch (406 mm) wide, x 5/16 inch thick

1шт.

14

1547110C1

SWEEP

18" 47° From Ground Line

1шт.

15

603891R3

SWEEP

18 inch (457 mm) wide, x 5/16 inch thick

1шт.

16

419-2836

PLOW BOLT,#3, 1/2" - 13 x 2 1/4", Gr 5

1/2 NC x 2-1/4 inch, used with 26 inch shank

1шт.

17

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

1/2 NC x 2-1/2 inch, used with 32 inch shank

1шт.

18

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.
