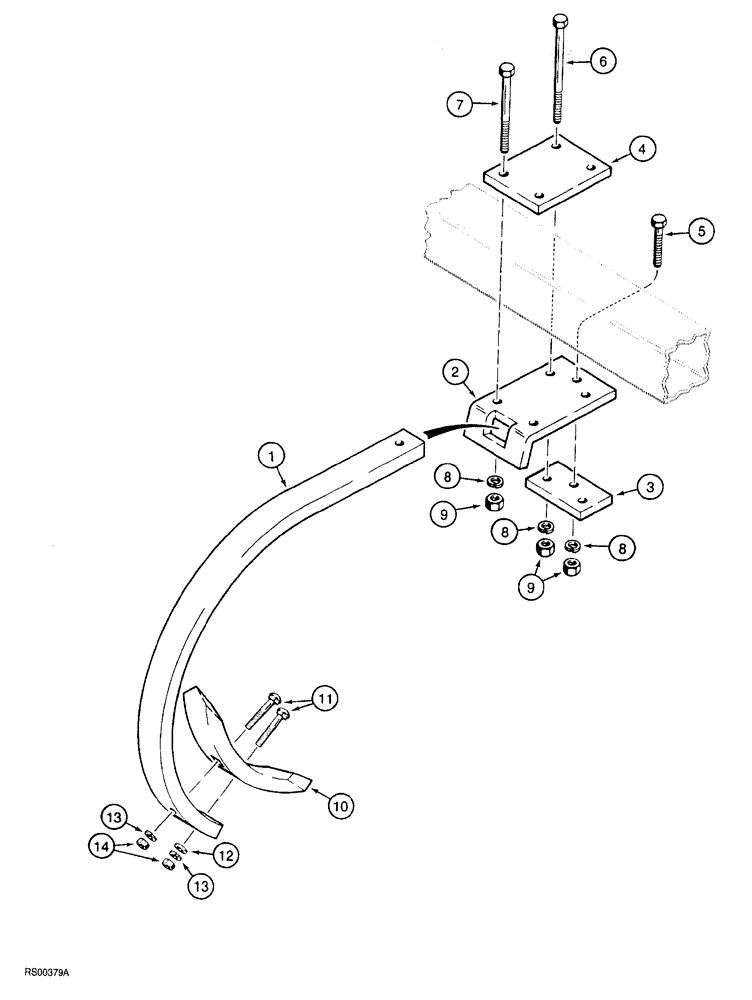

Запчасти Case IH 5700 (9-186) - RIGID CLAMP AND SHANK, REGULAR CLEARANCE - 26" (18) - MISCELLANEOUS

1

598939R1

FINGER

SHANK ground working tool, 1 (25) x 2 (51) x 26 inch (660 mm)

1шт.

2

598938R1

BRACKET

shank clamping

1шт.

3

598937R1

BAR

PLATE shank clamping

1шт.

4

1284069C1

PLATE

clamping

1шт.

5

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

6

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch, if used

1шт.

6

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

BOLT hex, 5/8 NC x 7-1/2 inch, if used

1шт.

7

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

BOLT hex, 5/8 NC x 8 inch, if used

1шт.

7

413-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

BOLT hex, 5/8 NC x 9-1/2 inch, if used

1шт.

8

492-11062

BEARING WASHER,5/8"

1шт.

9

425-1010

NUT,5/8"-11, G5

1шт.

10

REF

INSTRUCTION

POINT, 2" (51 mm) reversible chisel (See Fig. 9-190)

1шт.

11

419-3836

PLOW BOLT,#3, 1/2" - 13 x 2 1/4", Gr 5

1/2 NC x 2-1/4 inch

1шт.

12

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

1шт.
