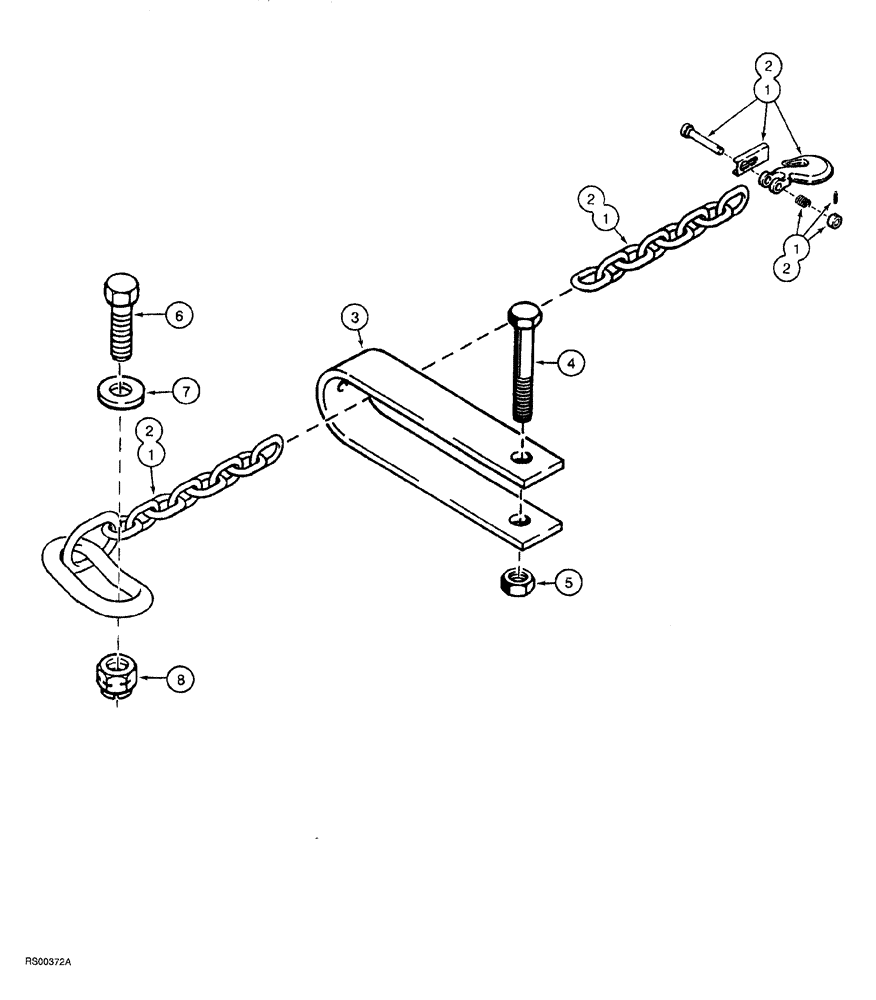

Запчасти Case IH 5700 (9-172) - HITCH CHAIN, ALL NON LEVEL LIFT MODELS (18) - MISCELLANEOUS

1

100682C3

CHAIN (AG)

hitch, 5/16 link x 59-114 inch

1шт.

2

63506C3

CHAIN (AG)

hitch, 3/8 link x 59-7/64 inch

1шт.

3

148558C1

CLEVIS

chain

1шт.

4

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

5

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

1шт.

6

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

7

495-81047

WASHER,25/32" x 2" x .179"

flat, 25/32 x 2 x 11/64 inch

1шт.

8

231-14412

LOCK NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

1шт.

61913C92

PACKAGE

KIT clevis, includes Refs. 3 through 8

1шт.
