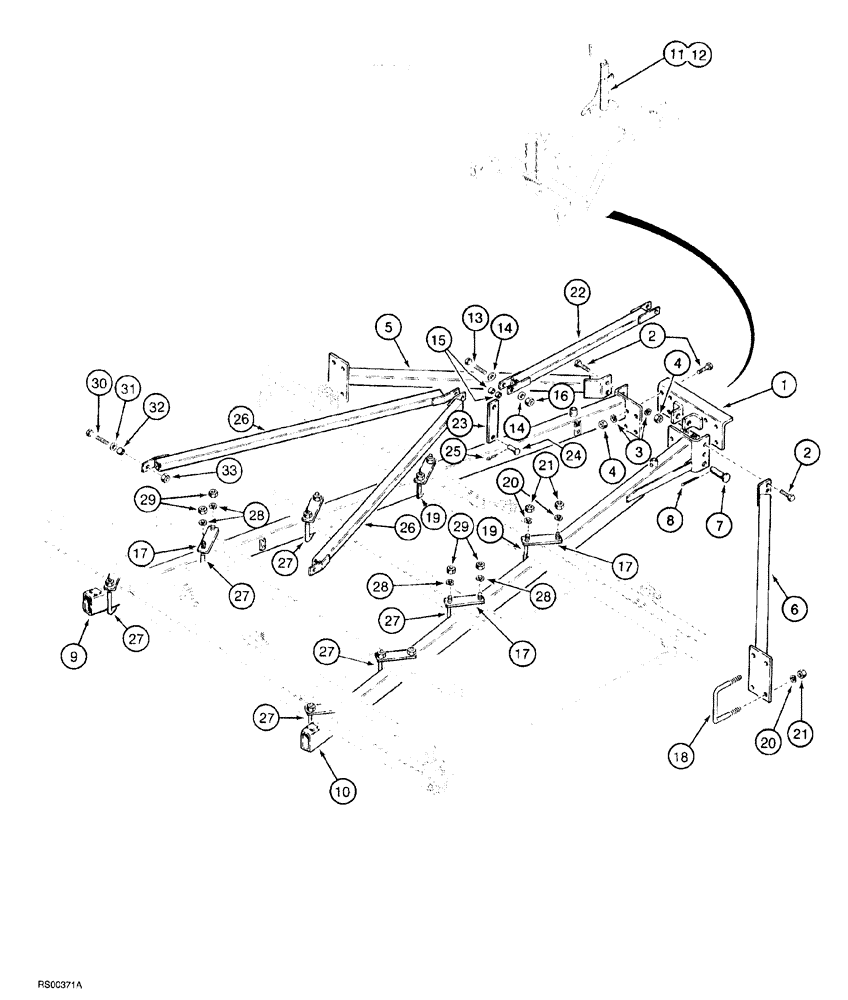

Запчасти Case IH 5700 (9-170) - LEVEL LIFT TRACTOR HITCH, BRACES AND BEAMS. LEVEL LIFT MODELS, VERTICAL AND DOUBLE FOLD (18) - MISCELLANEOUS

1

1284134C2

ANGLE

BRACKET hitch connecting

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

12шт.

3

492-11062

BEARING WASHER,5/8"

12шт.

4

425-1010

NUT,5/8"-11, G5

12шт.

5

1960532C1

HITCH ASSY, TRAILER

BRACE, outer, left hand

1шт.

6

1960533C1

HITCH ASSY, TRAILER

BRACE, outer, right hand

1шт.

7

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

1-1/4 x 3-1/4 inch, hardened

2шт.

8

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

9

1284413C1

TRAILER HITCH

SPARE PART BEAM, left hand, used on 5600 only

1шт.

9

97700C1

TRAILER HITCH

BEAM, left hand, used on 5700 only

1шт.

10

1284414C1

TRAILER HITCH

SPARE PART BEAM, right hand, used on 5600 only

1шт.

10

97701C1

TRAILER HITCH

BEAM, right hand, used on 5700 only

1шт.

11

135061C91

JACK

JACK side crank, Atwood manufactured, if used

1шт.

12

119354C1

JACK

side crank, Hammerblow manufactured, if used

1шт.

13

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

BOLT hex, 1 NC x 6 inch

1шт.

14

495-21106

WASHER,1"

flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

15

571823R1

SPACER,1 1/4" Tube x 1"

SPACER front connecting tube

2шт.

16

231-41116

NUT,1"-8, GB

hex, self locking, 1 inch NC

1шт.

17

812865C1

BAR

clamp

8шт.

18

91073C1

BOLT,U, 5/8" - 11 x 134mm

U, 5/8 NC x 6 inch

4шт.

19

810050C1

BOLT,U, 5/8" - 11 x 13.50

U, 5/8 NC x 13-1/2 inch

2шт.

20

492-11062

BEARING WASHER,5/8"

12шт.

21

425-1010

NUT,5/8"-11, G5

12шт.

22

1284408C1

TUBE,1330 mm Length

front connecting

1шт.

23

1284496C1

BAR

intermediate pivot

1шт.

24

439-51644

HEADED PIN,1" x 2 3/4", G5

headed, 1 x 2-3/4 inch

1шт.

25

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

26

1284460C1

TUBE,2270 mm Length

rear connecting, used on 5600 only

2шт.

26

1284406C1

TUBE,2200 mm Length

rear connecting, used on 5700 only

2шт.

27

812864C1

U-BOLT,5/8" - 11 x 11.6"

BOLT "U" 5/8 NC x 11-5/8 inch

6шт.

28

492-11062

BEARING WASHER,5/8"

12шт.

29

425-1010

NUT,5/8"-11, G5

12шт.

30

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

2шт.

31

495-81045

WASHER,25/32" x 1 3/4" x .179"

flat, 25/32 x 1-3/4 x 11/64 inch

2шт.

32

1333812C1

BUSHING,19.3mm ID x 25.4mm OD x 15mm L

rear connecting tube

2шт.

33

232-41112

NUT,3/4"-10, GC

2шт.
