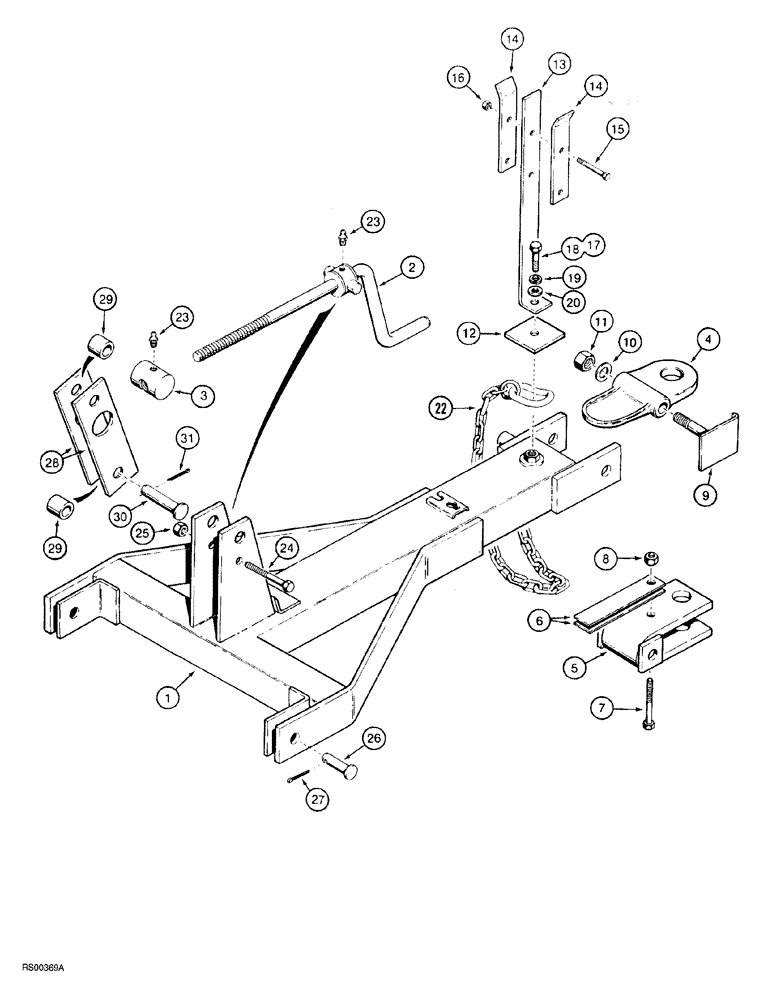

Запчасти Case IH 5700 (9-166) - LEVEL LIFT TRACTOR HITCH, FRONT ADJUSTABLE HITCH, ALL LEVEL LIFT MODELS (18) - MISCELLANEOUS

1

NSS

NOT SOLD SEPARAT

HITCH front, adjustable

1шт.

2

1284429C1

CRANK

ASSEMBLY, front adjustable hitch

1шт.

3

60147C2

LINK

SWIVEL crank

1шт.

4

61023C3

HITCH

hitch, tongue type, if used

1шт.

5

129900C2

CLEVIS

hitch, type, if used

1шт.

6

540475R1

SPRING

clevis, if used

2шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

8

232-41110

NUT,5/8"-11, GC

1шт.

9

121362C1

PIN

hitch clevis

1шт.

10

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch

4шт.

11

28748R1

LOCK NUT,1 1/4"-7, G5

hex, self locking, 1-1/4 inch NC

1шт.

12

822395C1

BAR

PLATE hose support bracket mounting

1шт.

13

58643C1

SUPPORT

hydraulic hose

1шт.

14

58644C1

HOLDER

hydraulic hose

2шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

16

231-4118

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

2шт.

17

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

BOLT hex, 3/4 NC x 1-1/4 inch, used on 27 foot through 41 foot wide plows

1шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Used on 41 foot through 53 foot wide plows

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

22

REF

INSTRUCTION

CHAIN hitch (See Fig. 9-174)

1шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

24

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch

1шт.

25

231-41110

LOCK NUT,5/8"-11, GB

1шт.

26

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

1-1/4 x 3-1/4 inch, hardened

2шт.

27

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

28

1284425C1

BAR

front pivot

2шт.

29

21696R1

SPACER,1" Pipe x 1 3/8"

pipe, 1 ID x 1-3/8 inch

2шт.

30

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

headed, 1 x 3-3/4 inch

2шт.

31

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.
