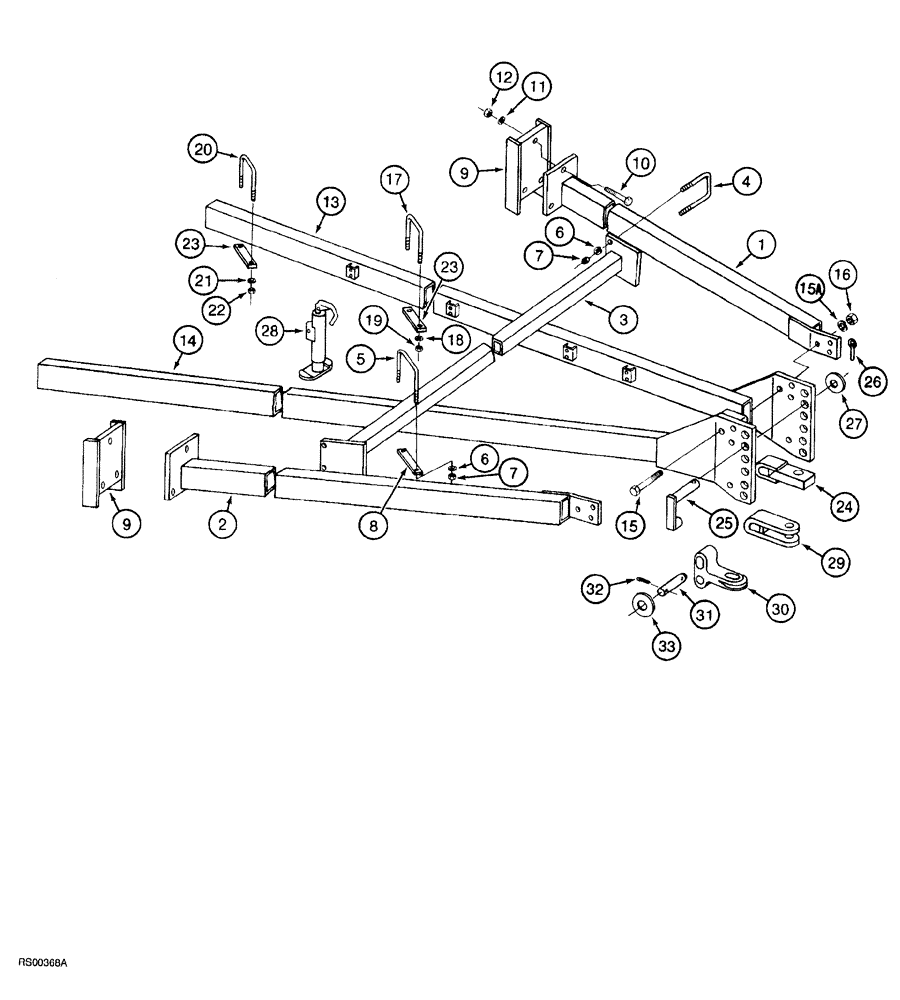

Запчасти Case IH 5700 (9-164) - TRACTOR HITCH, NON LEVELS LIFT MODELS, VERTICAL AND DOUBLE FOLD, 33 FOOT THROUGH 45 FOOT WIDE (18) - MISCELLANEOUS
№
Артикул
Название
Примечание
Количество
1
810042C1
BRACE
SPARE PART hitch, left hand
1шт.
2
810043C1
BRACE
SPARE PART hitch, right hand
1шт.
3
810130C1
BRACE
SPARE PART hitch, cross
1шт.
4
811627C2
U-BOLT
5/8 inch NC, 2 x 5 inch
2шт.
5
810141C1
BOLT,U, 5/8" - 11 x 10"
U, cross brace mounting
2шт.
6
492-11062
BEARING WASHER,5/8"
8шт.
7
425-1010
NUT,5/8"-11, G5
8шт.
8
812662C1
BAR
mounting, U-bolt
2шт.
9
810145C2
SUPPORT
hitch brace, rear
2шт.
10
413-1096
BOLT,Hex, 5/8" - 11 x 6", Gr 5
hex, 5/8 NC x 6 inch
6шт.
11
492-11062
BEARING WASHER,5/8"
6шт.
12
425-1010
NUT,5/8"-11, G5
6шт.
13
810198C1
BEAM
SPARE PART hitch, left hand
1шт.
14
810199C1
BEAM
SPARE PART hitch, right hand
1шт.
15
413-12104
BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5
hex, 3/4 NC x 6-1/2 inch
3шт.
15
492-11075
LOCK WASHER,3/4"
3/4"
3шт.
16
425-1012
NUT,3/4"-10, G5
hex, 3/4 inch NC
3шт.
17
810050C1
BOLT,U, 5/8" - 11 x 13.50
U, 5/8 NC x 13-1/2 inch
2шт.
18
492-11062
BEARING WASHER,5/8"
4шт.
19
425-1010
NUT,5/8"-11, G5
4шт.
20
812864C1
U-BOLT,5/8" - 11 x 11.6"
BOLT "U" 5/8 NC x 11-5/8 inch
6шт.
21
492-11062
BEARING WASHER,5/8"
12шт.
22
425-1010
NUT,5/8"-11, G5
12шт.
23
812865C1
BAR
clamp, U-bolt
8шт.
24
605866R91
TOW BAR
hitch, clevis type, heavy duty, special, if used
1шт.
25
810066C2
PIN
retaining
1шт.
26
D33805
PIN
locking
1шт.
27
495-21162
WASHER,1 1/2"
flat, 1-5/8 x 3-1/2 x 3/16
1шт.
28
121557A1
JACK ASSY.
hitch (Replacse 810363C91)
1шт.
29
1279227C2
TRAILER HITCH
CLEVIS, heavy duty, if used
1шт.
30
810442C1
TOW BAR
TONGUE hitch, cast type, heavy duty, rigid, if used
1шт.
31
810462C1
PIN
used with rigid tongue, if used
2шт.
32
432-1640
COTTER PIN,1/4" x 2 1/2"
if used 1/4" x 2 1/2"
4шт.
33
495-81223
WASHER,1 17/32" x 2 1/4" x .060"
flat, 1-17/32 x 2-1/4 x 3/64 inch, tongue mounting pin, if used
4шт.
Выбрано товаров: 34
