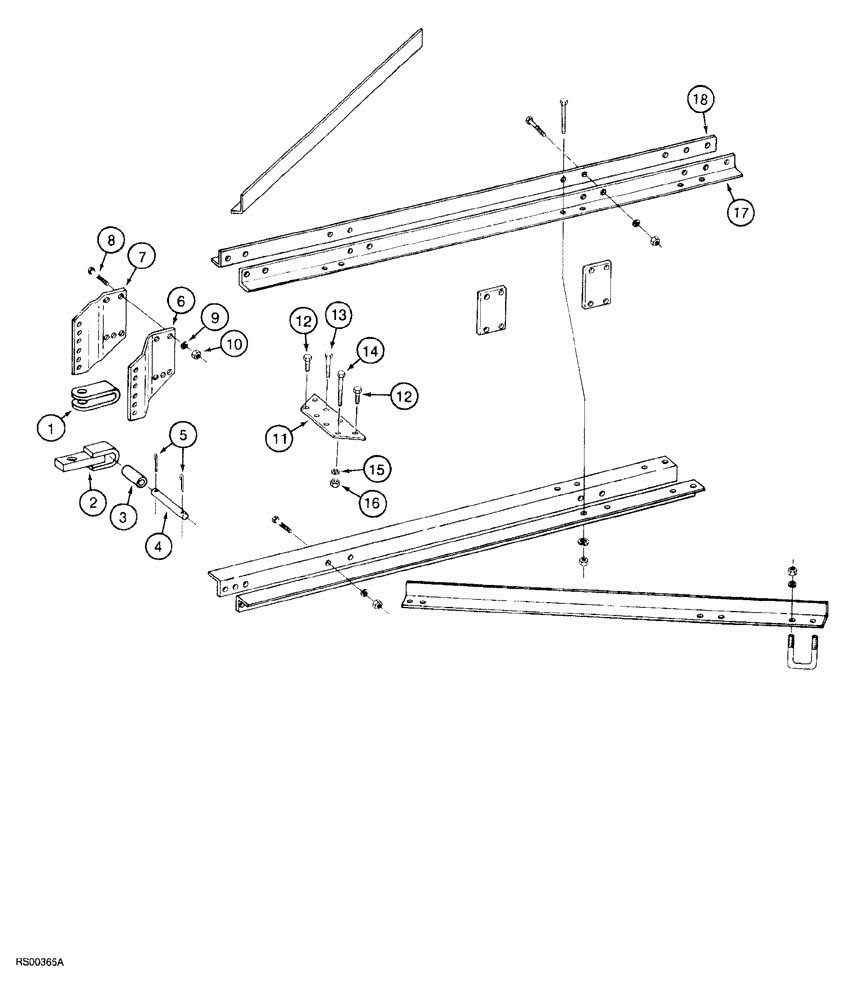

Запчасти Case IH 5700 (9-158) - TRACTOR HITCH, TRAIL BEHIND MODELS, 13 FOOT WIDE FRAME (18) - MISCELLANEOUS

1

1279227C2

TRAILER HITCH

CLEVIS, heavy duty, if used

1шт.

2

605866R91

TOW BAR

hitch, clevis type, heavy duty, special, if used

1шт.

3

597326R1

SPACER

hitch tongue

1шт.

4

813452C1

PIN

1 x 5-5/8 inch, clevis or tongue mounting

1шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

6

608495R1

KNIFE SECTION

SECTION, KNIFE PLATE tractor hitch, left hand

1шт.

7

608496R1

ASSEMBLY

PLATE tractor hitch, right hand

1шт.

8

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

5шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

10

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

5шт.

11

608281R2

BAR

PLATE connecting, hitch channel

1шт.

12

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

3шт.

13

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

14

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT hex, 5/8 NC x 2-1/4 inch

1шт.

15

492-11062

BEARING WASHER,5/8"

8шт.

16

425-1010

NUT,5/8"-11, G5

8шт.

17

608286R4

ANGLE

CHANNEL hitch, upper left hand, used on model 5600 trail behind chisel plows

1шт.

17

609121R1

ANGLE

CHANNEL hitch, upper left hand, used on model 5700 trail behind chisel plows

1шт.

18

608287R4

ANGLE

CHANNEL hitch, upper right hand, used on model 5600 trail behind chisel plows

1шт.

18

609122R1

ANGLE

CHANNEL hitch, upper right hand, used on model 5700 trail behind chisel plows

1шт.

19

608292R3

ANGLE

CHANNEL hitch, lower left hand, used on model 5600 trail behind chisel plows

1шт.

19

609123R1

ANGLE

CHANNEL hitch, lower left hand, used on model 5700 trail behind chisel plows

1шт.

20

608293R3

ANGLE

CHANNEL hitch, lower right hand, used on model 5600 trail behind chisel plows

1шт.

20

609124R1

ANGLE

CHANNEL hitch, lower right hand, used on model 5700 trail behind chisel plows

1шт.

21

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch

8шт.

22

492-11062

BEARING WASHER,5/8"

8шт.

23

425-1010

NUT,5/8"-11, G5

8шт.

24

594853R1

BLOCK

PLATE channel connecting

2шт.

25

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT hex, 5/8 NC x 2-1/4 inch

8шт.

26

492-11062

BEARING WASHER,5/8"

8шт.

27

425-1010

NUT,5/8"-11, G5

8шт.

28

608299R1

ANGLE

CHANNEL hitch support, left hand, used on model 5600 trail behind chisel plows

1шт.

28

609125R1

ANGLE

CHANNEL hitch support, left hand, used on model 5700 trail behind chisel plows

1шт.

29

608300R1

ANGLE

CHANNEL hitch support, right hand, used on model 5600 trail behind chisel plows

1шт.

29

609126R1

ANGLE

CHANNEL hitch support, right hand, used on model 5700 trail behind chisel plows

1шт.

30

608301R1

U-BOLT,U, 5/8" - 11 x 5", Gr 2

BOLT "U" hitch support channel mounting

4шт.

31

492-11062

BEARING WASHER,5/8"

8шт.

32

425-1010

NUT,5/8"-11, G5

8шт.
