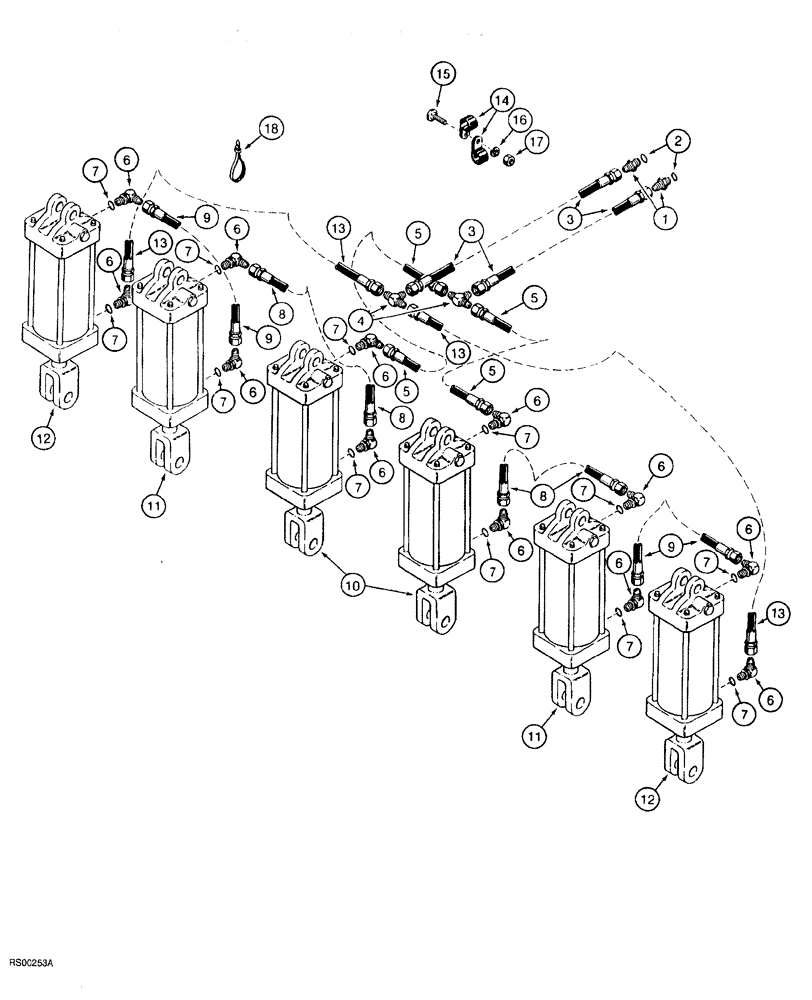

Запчасти Case IH 5700 (8-010) - DEPTH CONTROL CIRCUIT, LEVEL LIFT MODELS, DOUBLE FOLD, 47 FOOT THROUGH 53 FOOT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

1284302C1

HYDRAULIC HOSE

330 inch (8382 mm) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

2шт.

5

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

12шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

2шт.

9

1301350C2

HYDRAULIC HOSE

120 inch (3048 mm) long

2шт.

10

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke (See Fig. 8-48)

2шт.

11

1282328C92

CYLINDER ASSY.

3-3/4 (95) ID x 8 inch (203 mm)stroke (See Fig. 8-44)

2шт.

11

87423766R

REMAN-HYD CYLINDER

3-3/4" x 8"

2шт.

11

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

12

1282324C93

CYLINDER

3-1/2 (89) ID x 8 inch (203 mm) stroke (See Fig. 8-40)

2шт.

12

84255910R

REMAN-HYD CYLINDER

5600, 5700, Reman For New P/N 1282324C93

2шт.

12

84255910C

CORE-HYD CYLINDER

Return Number

2шт.

13

1284263C1

HYDRAULIC HOSE

285 inch (7240 mm) long

2шт.

14

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P-type, 7/16 inch ID

1шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.
