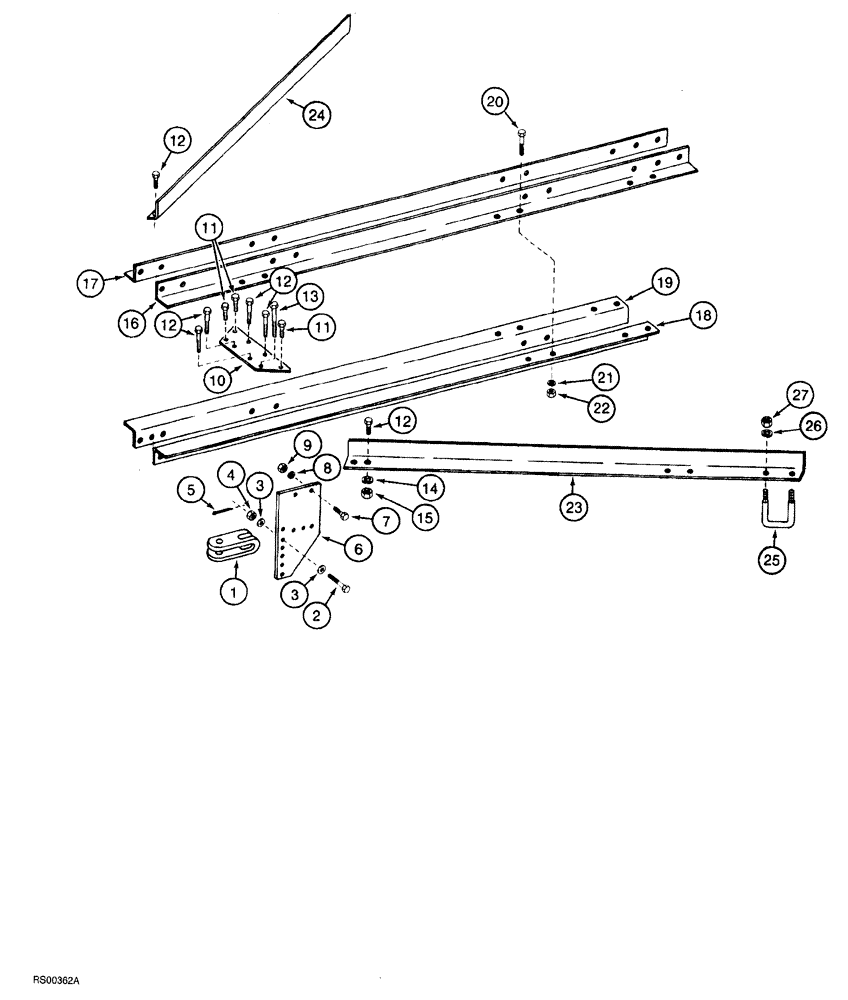

Запчасти Case IH 5700 (9-152) - TRACTOR HITCH, TRAIL BEHIND MODELS, 7 FOOT WIDE FRAME (18) - MISCELLANEOUS

1

601910R3

CLEVIS

hitch

1шт.

2

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

hex, 1 NC x 4-1/2 inch

1шт.

3

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

2шт.

4

425-1016

NUT,1"-8, G5

Hex

1шт.

5

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

6

608279R1

PLATE

tractor hitch

1шт.

7

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

5шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

9

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

5шт.

10

608281R2

BAR

PLATE connecting, hitch channel

1шт.

11

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

3шт.

12

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

13

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT hex, 5/8 NC x 2-1/4 inch

1шт.

14

492-11062

BEARING WASHER,5/8"

8шт.

15

425-1010

NUT,5/8"-11, G5

8шт.

16

608282R2

HITCH ASSY, TRAILER

CHANNEL, upper left hand

1шт.

17

608283R2

ANGLE

CHANNEL, hitch, upper right hand

1шт.

18

608288R2

ANGLE

CHANNEL, hitch, lower left hand

1шт.

19

608289R2

ANGLE

CHANNEL, hitch, lower right hand

1шт.

20

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch

8шт.

21

492-11062

BEARING WASHER,5/8"

8шт.

22

425-1010

NUT,5/8"-11, G5

8шт.

23

608295R1

ANGLE

CHANNEL hitch support, lefthand

1шт.

24

608296R1

ANGLE

CHANNEL hitch support, righthand

1шт.

25

608301R1

U-BOLT,U, 5/8" - 11 x 5", Gr 2

BOLT "U" hitch support channel mounting

2шт.

26

492-11062

BEARING WASHER,5/8"

4шт.

27

425-1010

NUT,5/8"-11, G5

4шт.
