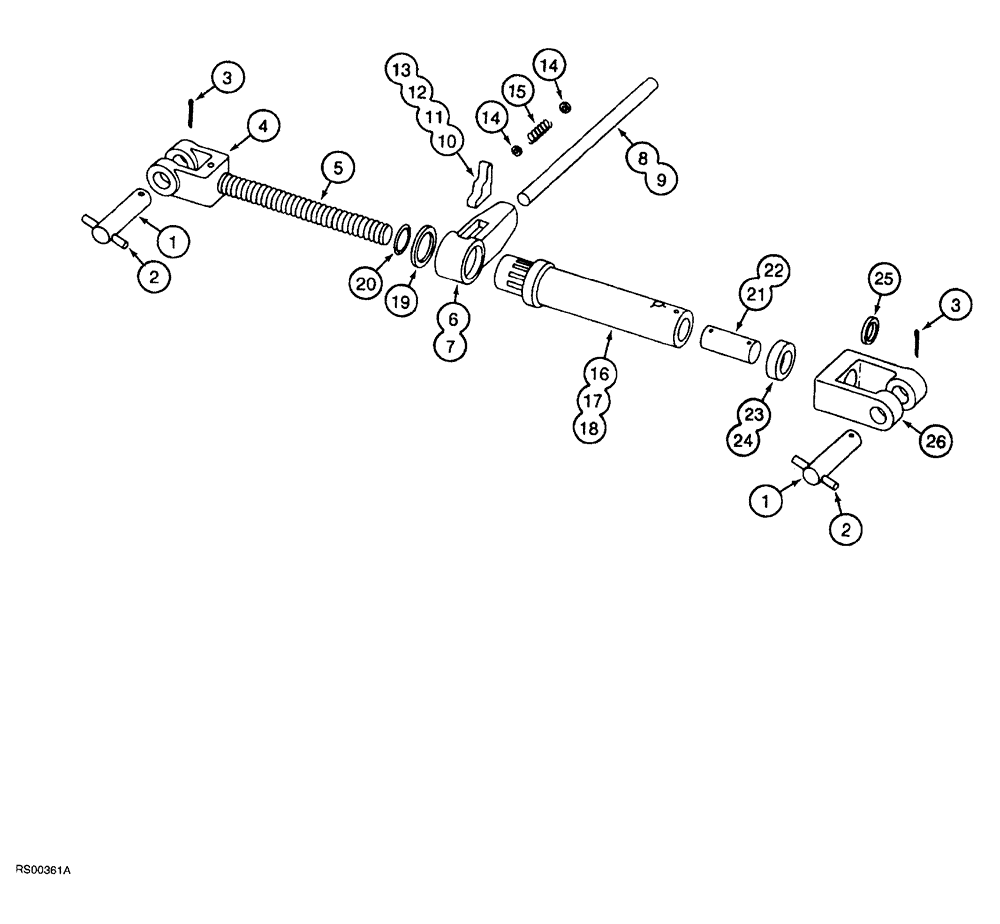

Запчасти Case IH 5700 (9-150) - HAND LIFT, ALL TRAIL BEHIND MODELS (18) - MISCELLANEOUS

1

591104R1

PIN

hand lift

2шт.

2

443186

GROOVED PIN,3/8" x 2 3/4", Type E

roll, 3/8 x 2-3/4 inch

2шт.

3

1978739C1

PIN

hair

2шт.

591117R91

CAPSCREW

ROD ASSEMBLY, tension

1шт.

4

NSS

NOT SOLD SEPARAT

ROD tension, hand lift

1шт.

5

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

1шт.

6

591109R1

SUPPORT

LEVER ratchet, hand lift control

1шт.

7

591101R1

PIN

ratchet lever

1шт.

8

591103R1

ROD

rachet lever arm

1шт.

9

438-31020

PIN,5/32" x 1 1/4", Coiled

5/32" x 1 1/4", Coiled

1шт.

10

591108R1

PAWL

RATCHET hand lift control lever

1шт.

11

438-31628

PIN,1/4" x 1 3/4", Coiled

1/4" x 1 3/4", Coiled

1шт.

12

591102R1

PIN

hand lift control rod

1шт.

13

438-31012

PIN,5/32" x 3/4", Coiled

5/32" x 3/4", Coiled

1шт.

14

495-81008

WASHER,.469" x 3/4" x .060"

flat, 15/32 x 3/4 x 1/16 inch

2шт.

15

M296

SPRING

ratchet

1шт.

16

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

lift adjusting

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

19

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

20

591116R1

SNAP RING,#200, 1.909", Ext Spiral

adjusting tube

1шт.

21

591105R1

ANCHOR

PIN adjusting screw anchor

1шт.

22

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

1шт.

23

591474R1

COLLAR

adjusting tube pin

1шт.

24

438-32428

PIN,3/8" x 1 3/4", Coiled

3/8" x 1 3/4", Coiled

1шт.

25

50738V

THRUST BEARING

thrust, adjusting tube pin

1шт.

26

591110R1

YOKE

UNIVERSAL JOINT YOKE adjusting tube

1шт.
