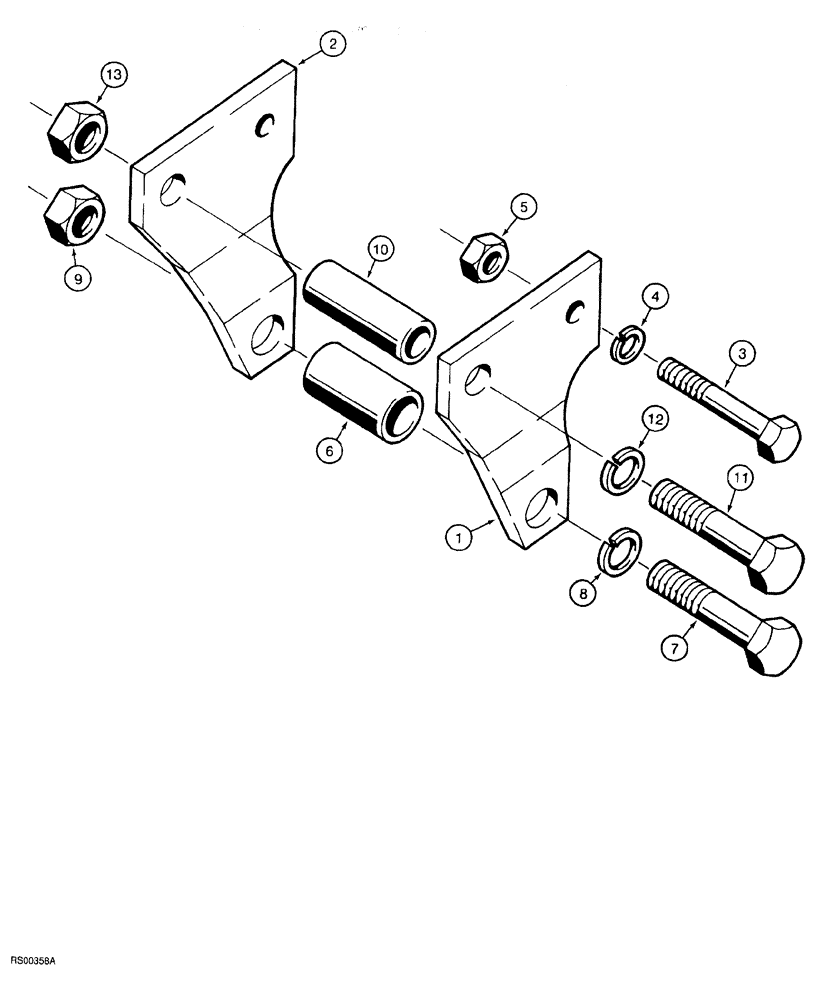

Запчасти Case IH 5700 (9-144) - QUICK COUPLER HITCH ADAPTER, DIRECT MOUNTED MODELS, TWO RANK (18) - MISCELLANEOUS

1

597796R1

PLATE

hitch adapter, left hand

1шт.

2

597797R1

PLATE

hitch adapter, right hand

1шт.

3

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

1шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

5

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

1шт.

6

597801R1

SPACER

BUSHING adapter plates

1шт.

7

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

hex, 1 NC x 4-1/2 inch

1шт.

8

492-11100

LOCK WASHER,1"

1"

1шт.

9

425-1016

NUT,1"-8, G5

Hex

1шт.

10

PO27260

SPACER,1" Pipe x 2"

2 inch (51 mm) long

1шт.

11

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

BOLT hex, 1 NC x 6 inch

1шт.

12

492-11100

LOCK WASHER,1"

1"

1шт.

13

425-1016

NUT,1"-8, G5

Hex

1шт.
