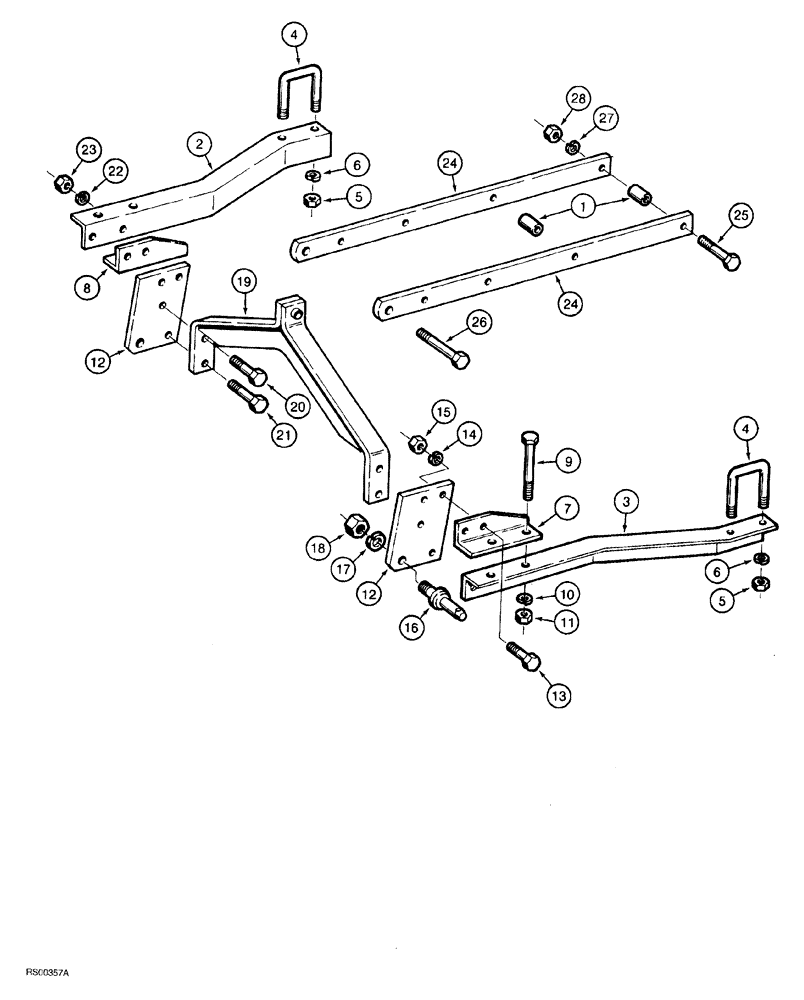

Запчасти Case IH 5700 (9-142) - THREE POINT HITCH, DIRECT MOUNTED MODELS, TWO RANK (18) - MISCELLANEOUS

1

608460R1

SPACER

hitch connecting bar

2шт.

2

608452R2

ANGLE

ARM hitch support, left hand

1шт.

3

608453R2

ANGLE

ARM hitch support, right hand

1шт.

4

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8 inch NC

2шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

492-11062

BEARING WASHER,5/8"

4шт.

7

597799R1

ANGLE

BRACKET hitch support arm, right hand

1шт.

8

597800R1

ANGLE

BRACKET hitch support arm, left hand

1шт.

9

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

4шт.

10

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

11

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

4шт.

12

597798R1

BAR

PLATE hitch angle support

2шт.

13

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

14

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

15

429-1012

NUT,3/4"-10, G8

hex, NC

4шт.

16

472790R2

STUD

PIN hitch

2шт.

17

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

18

425-1118

NUT,1 1/8"-12, G5

hex, 1-1/8 inch NF

2шт.

19

608457R91

TRAILER HITCH

three point

1шт.

20

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

2шт.

21

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

2шт.

22

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

23

429-1012

NUT,3/4"-10, G8

hex, NC

4шт.

24

810222C1

BAR

LINK hitch connecting

2шт.

25

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

2шт.

26

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

27

492-11075

LOCK WASHER,3/4"

3/4"

3шт.

28

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

3шт.
