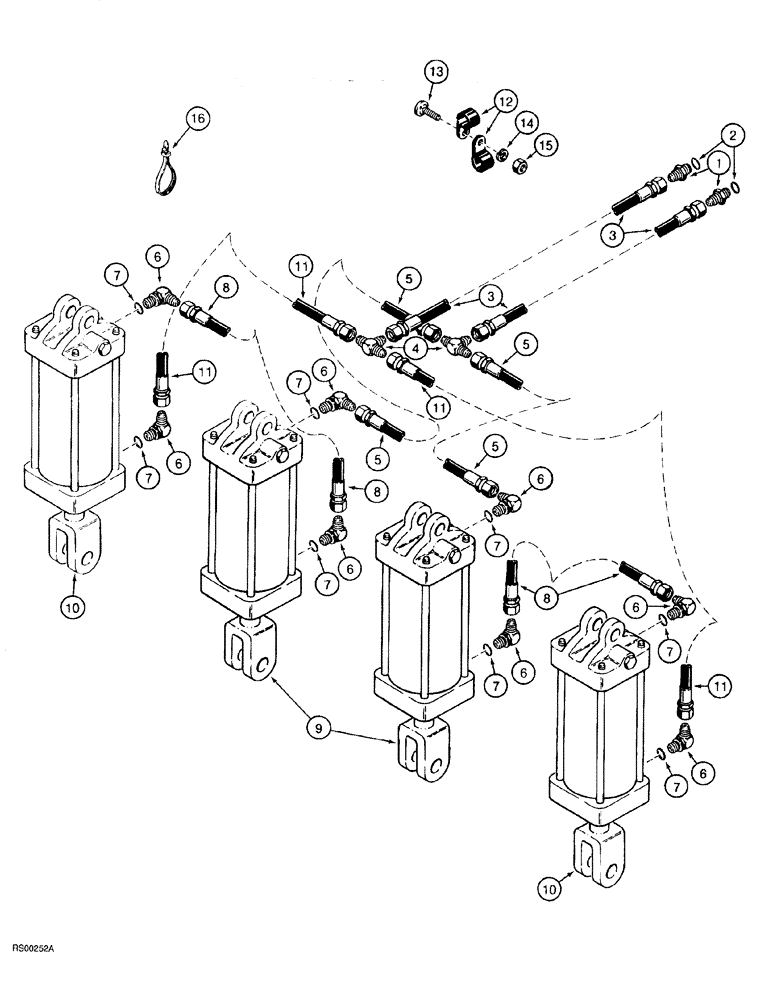

Запчасти Case IH 5700 (8-008) - DEPTH CONTROL HYDRAULIC CIRCUIT, LEVEL LIFT MODELS, VERTICAL & DOUBLE FOLD, 27 FT THROUGH 41 FT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

1284302C1

HYDRAULIC HOSE

330 inch (8382 mm) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

2шт.

5

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

8шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

129782C2

HYDRAULIC HOSE

165 inch (4191 mm) long (27 foot through 33 foot wide)

2шт.

8

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

(35 foot through 41 foot wide)

2шт.

9

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke (See Fig. 8-48)

2шт.

10

1282328C92

CYLINDER ASSY.

3-3/4 (95) ID x 8 inch (203 mm) stroke (See Fig. 8-44)

2шт.

10

87423766R

REMAN-HYD CYLINDER

3-3/4 (95) ID x 8 inch (203 mm) stroke (See Fig. 8-44)

2шт.

10

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

11

129782C2

HYDRAULIC HOSE

165 inch (4191 mm) long (27 foot through 33 foot wide)

2шт.

11

129764C2

HYDRAULIC HOSE

215 inch (5461 mm) long (35 foot through 41 foot wide)

2шт.

12

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P-type, 7/16 inch ID

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.
