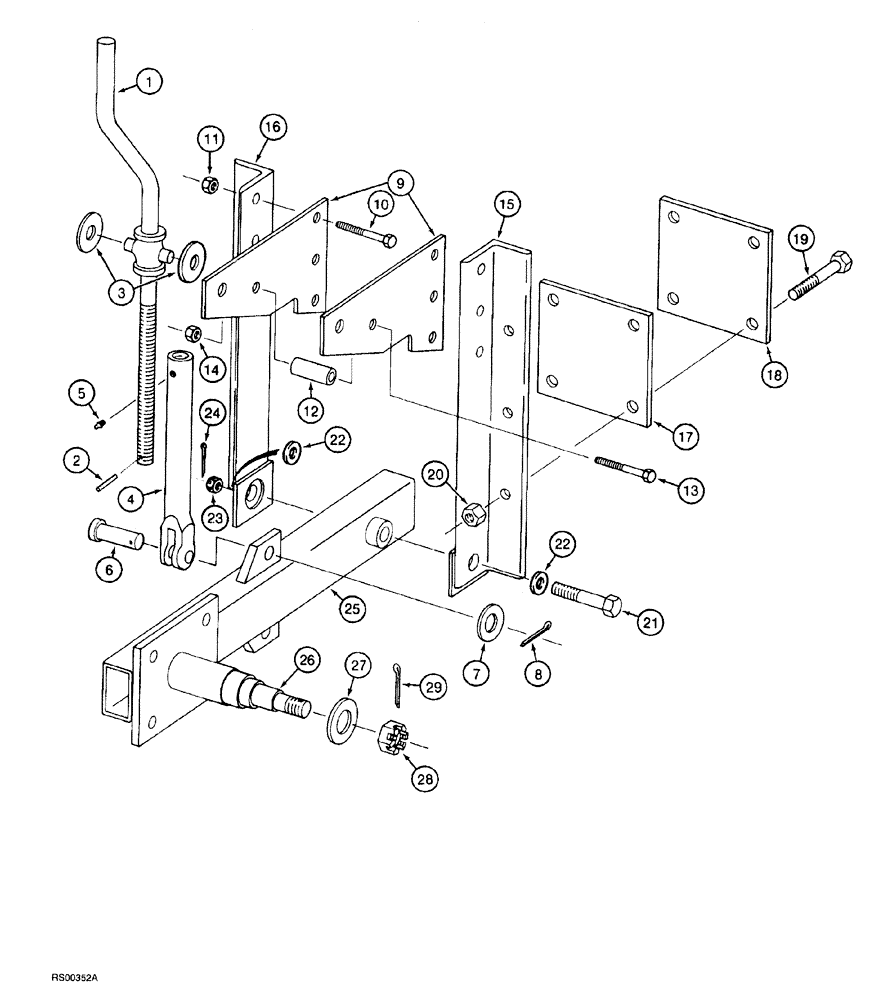

Запчасти Case IH 5700 (9-132) - GAUGE WHEEL MOUNTING, CRANK ADJUSTABLE TYPE, ALL DIRECT MOUNTED MODELS (18) - MISCELLANEOUS

1

599815R1

CRANK

gauge wheel adjusting

2шт.

2

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1/8" x 7/8", Slotted

2шт.

3

495-81041

WASHER,25/32" x 1 1/2" x .060"

flat, 25/32 x 1-1/2 x 1/16 inch

4шт.

4

458520R1

THREADED TIE-ROD

YOKE adjusting crank

2шт.

5

219-16

LUBE NIPPLE,5/16" NPTF

FITTING grease, straight, 5/16 drive type x 19/32 inch

2шт.

6

439-51236

HEADED PIN,19.05mm OD x 57.15mm L

headed, 3/4 x 2-1/4 inch

2шт.

7

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

9

599814R2

BAR

PLATE adjusting crank guide

4шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

11

425-108

NUT,1/2" - 13, Gr 5

12шт.

12

517920R1

SPACER,1/2" Pipe x 2"

pipe, 1/2 ID x 2 inch

2шт.

13

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, 1/2 NC x 3-1/4 inch

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

2шт.

15

599807R1

ANGLE

BRACKET gauge wheel mounting, left hand

2шт.

16

599808R1

ANGLE

BRACKET gauge wheel mounting, right hand

2шт.

17

599812R1

BAR

PLATE bracket mounting, inner

2шт.

18

599813R1

BAR

PLATE bracket mounting, outer

2шт.

19

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

8шт.

20

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

8шт.

21

113-2729

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

22

495-81045

WASHER,25/32" x 1 3/4" x .179"

flat, 25/32 x 1-3/4 x 1 1/64 inch

4шт.

23

425-1212

SLOTTED NUT,3/4"-10, G5

hex, slotted, 3/4 inch NC

2шт.

599819R2

AXLE HOUSING

ASSEMBLY, gauge wheel

2шт.

25

NSS

NOT SOLD SEPARAT

AXLE gauge wheel

1шт.

599823R11

SPINDLE

ASSEMBLY, gauge wheel axle

1шт.

26

NSS

NOT SOLD SEPARAT

SPINDLE gauge wheel axle

1шт.

27

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

28

425-1312

SLOTTED NUT,3/4"-16, G5

hex, slotted, 3/4 inch NF

1шт.

29

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

24

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

2шт.
