(9-130) - GAUGE WHEEL MOUNTING - SLIDE ADJUSTING, MOUNTED AT FRAME END, ALL DIRECT MOUNTED MODELS

Запчасти Case IH 5700 (9-130) - GAUGE WHEEL MOUNTING - SLIDE ADJUSTING, MOUNTED AT FRAME END, ALL DIRECT MOUNTED MODELS (18) - MISCELLANEOUS

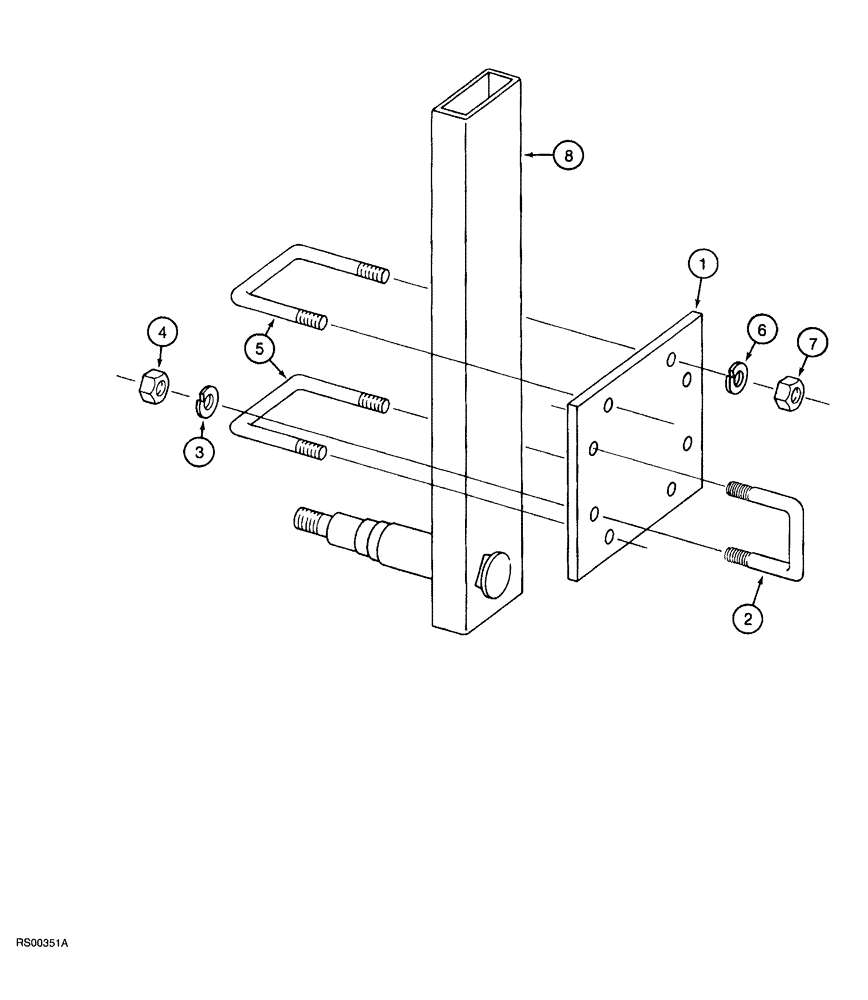

Схема запчастей Case IH 5700 - (9-130) - GAUGE WHEEL MOUNTING - SLIDE ADJUSTING, MOUNTED AT FRAME END, ALL DIRECT MOUNTED MODELS (18) - MISCELLANEOUS
4
6
7
8
5
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

811064C1

BAR

PLATE gauge wheel axle mounting

2шт.

2

811627C2

U-BOLT

5/8 inch NC, 2 x 5 inch

4шт.

3

492-11062

BEARING WASHER,5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

609871R1

BOLT,Wheel, 5/8" - 11 x 3 3/8", Class 2

U, 5/8 inch NC

4шт.

6

492-11062

BEARING WASHER,5/8"

8шт.

7

425-1010

NUT,5/8"-11, G5

8шт.

8

812163C2

AXLE HOUSING

gauge wheel

2шт.

Выбрано товаров: 8
