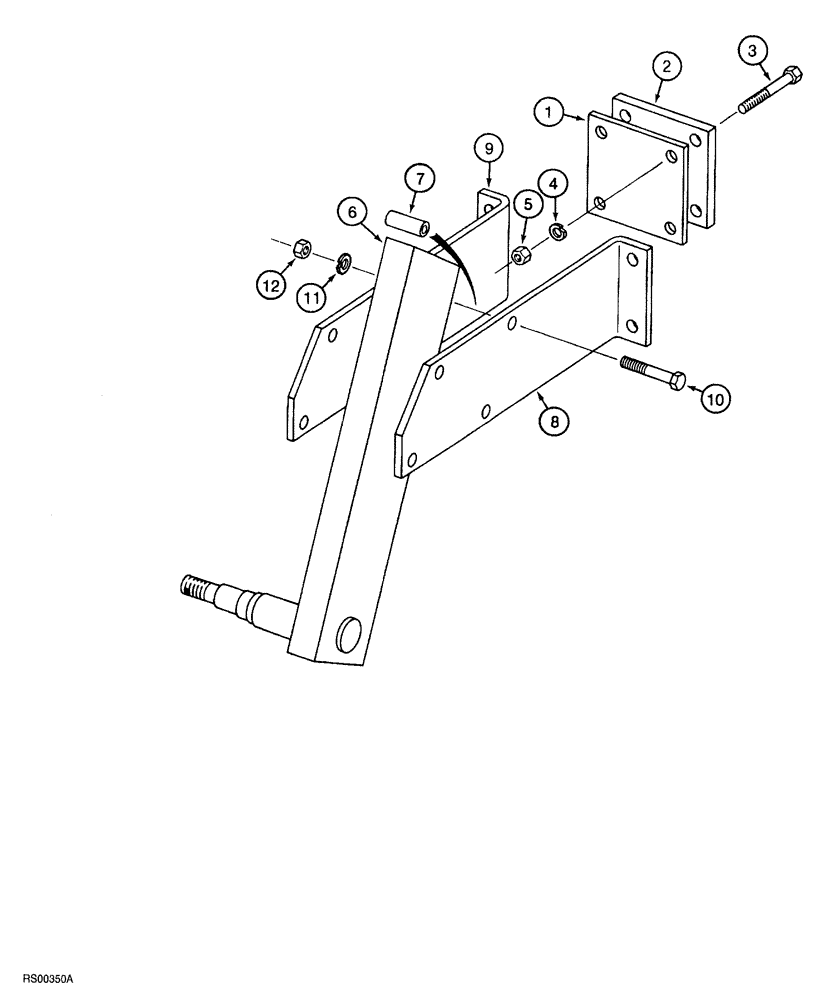

Запчасти Case IH 5700 (9-128) - GAUGE WHEEL MOUNTING - SLIDE ADJUSTING, MOUNTED FORWARD ON FRONT BEAM, ALL DIRECT MOUNTED MODELS (18) - MISCELLANEOUS

1

608465R1

BAR

PLATE gauge wheel support arm mounting, inner

2шт.

2

608466R1

BLOCK

PLATE gauge wheel support arm mounting, outer

2шт.

3

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

BOLT hex, 3/4 NC x 6 inch

8шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

5

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

8шт.

6

812163C2

AXLE HOUSING

gauge wheel

2шт.

7

868828R1

SPACER,3/4" X-Strng Pipe x 1 7/8"

gauge wheel axle mounting bolt

4шт.

8

608463R1

SUPPORT

ARM, gauge wheel axle, left hand

2шт.

9

608464R1

SUPPORT

ARM, gauge wheel axle, right hand

2шт.

10

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

BOLT hex, 5/8 NC x 3-3/4 inch

8шт.

11

492-11062

BEARING WASHER,5/8"

8шт.

12

425-1010

NUT,5/8"-11, G5

8шт.
