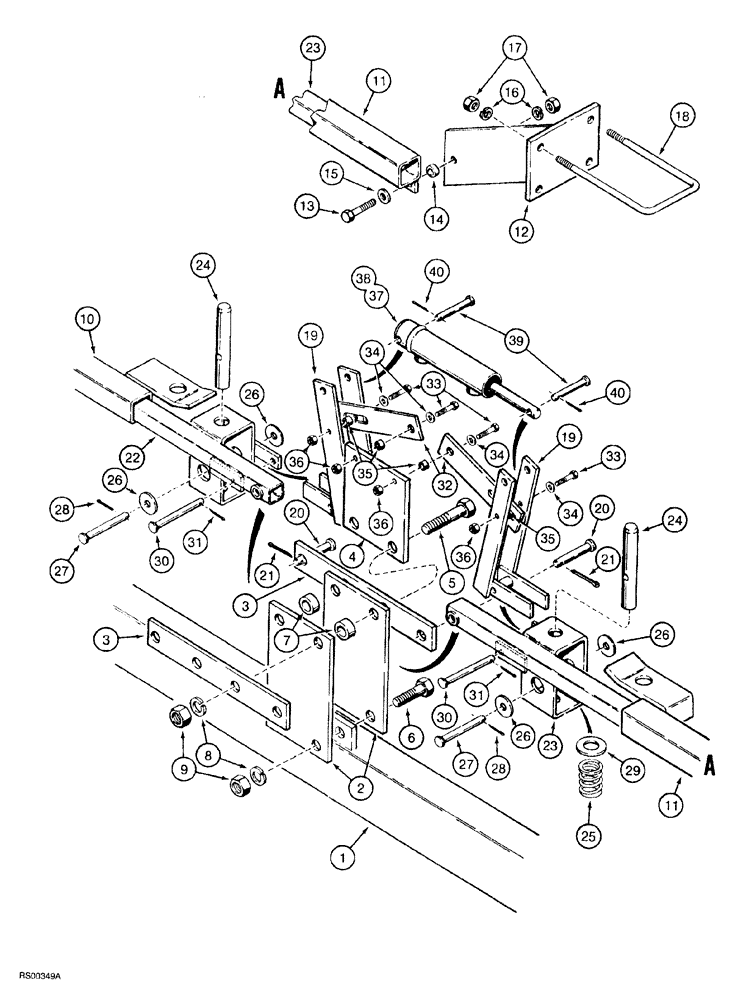

Запчасти Case IH 5700 (9-126) - AUTOMATIC WING TRANSPORT LOCK, LEVEL LIFT MODELS, VERTICAL & DOUBLE FOLD,35 THROUGH 53 FOOT WIDE (18) - MISCELLANEOUS

1

REF

INSTRUCTION

FRAME main

1шт.

2

1284163C2

PLATE

automatic wing transport mounting

2шт.

3

1284164C2

BAR

tube support

2шт.

4

1284165C2

PLATE

lever stop

1шт.

5

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

6

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

7

355682R1

SPACER,3/4" Pipe x 3/4"

lever stop plate

2шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

9

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

4шт.

10

96062C1

TUBE

automatic wing transport lock, outer, left hand

1шт.

11

96063C1

TUBE

automatic wing transport lock, outer, right hand

1шт.

12

96068C1

SUPPORT

automatic wing transport lock, outer

2шт.

13

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

2шт.

14

320993R1

SPACER,7/8" Tube x 1/2"

outer support

2шт.

15

495-51066

WASHER,9/16" x 1 1/4" x .1"

flat, 21/32 x 1-1/4 x 3/32 inch

2шт.

16

492-11062

BEARING WASHER,5/8"

10шт.

17

425-1010

NUT,5/8"-11, G5

10шт.

18

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8 inch NC

4шт.

19

1284082C2

LEVER

automatic wing transport lock

2шт.

20

439-51244

HEADED PIN,3/4" x 2 3/4"

headed, 3/4 x 2-3/4 inch

2шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

22

1284078C1

TUBE,164 mm Length

inner lockout, left hand

1шт.

23

1284079C1

TUBE

inner lockout, right hand

1шт.

24

1284086C1

PIN

transport locking

2шт.

25

656345C2

SPRING

transport locking pin

2шт.

26

495-81163

WASHER,17/32" x 1 1/2" x .120"

flat, 17/32 x 1-1/2 x 7/64 inch

4шт.

27

439-5860

HEADED PIN,1/2" x 3 3/4"

1/2 x 3-3/4 inch

2шт.

28

432-1216

COTTER PIN,3/16" x 1"

2шт.

29

495-21106

WASHER,1"

flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

30

439-5864

HEADED PIN,1/2" x 4"

headed, 1/2 x 4 inch

2шт.

31

432-1216

COTTER PIN,3/16" x 1"

2шт.

32

91251C2

BAR

lever restraining

2шт.

33

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

4шт.

34

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

35

568257R1

SPACER,1/2" Tube x 3/8"

1/2 x 3/8 inch

4шт.

36

231-4115

NUT,5/16"-18, GB

4шт.

37

1286364C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke (See Fig. 8-74) (lf used)

1шт.

38

811998C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke (See Fig. 8-76) (lf used)

1шт.

39

439-5860

HEADED PIN,1/2" x 3 3/4"

1/2 x 3-3/4 inch

2шт.

40

432-1216

COTTER PIN,3/16" x 1"

2шт.
