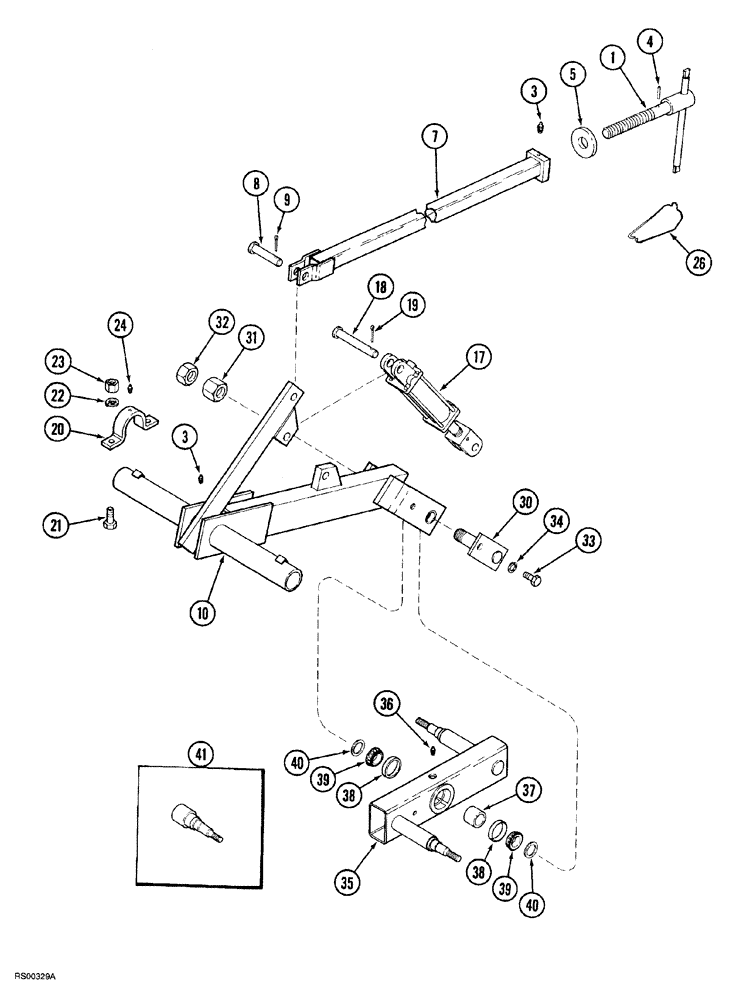

1
1284398C3
STUD
truss rod
2шт.
3
219-87
LUBE NIPPLE,1/4" - 28 NPTF
4шт.
4
438-32432
PIN,9.53mm OD x 50.8mm L
3/8" x 2", Coiled
2шт.
5
495-81203
WASHER,1 9/32" x 2" x .120"
flat, 1-9/32 x 2 x 1/8 inch
2шт.
7
1284403C1
ROD
TUBE truss, used on 5600 only
2шт.
7
1284474C1
TUBE,1764 mm Length
TUBE trus, used on 5700 only
2шт.
8
439-11639
HEADED PIN,1" x 2 7/16"
headed, 1 x 2-7/16 inch, grade 2
2шт.
9
432-1624
COTTER PIN,1/4" x 1 1/2"
2шт.
10
135739A1
ROCKSHAFT
depth control, used on 5600 only
2шт.
10
135740A1
ROCKSHAFT
depth control, used on 5700 only
2шт.
17
1282324C93
CYLINDER
ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke (See Fig. 8-40)
2шт.
84255910R
REMAN-HYD CYLINDER
5600, 5700, Reman For New P/N 1282324C93
2шт.
84255910C
CORE-HYD CYLINDER
Return Number
1шт.
18
810751C1
PIN
1 x 3-1/2 inch long
4шт.
19
432-1624
COTTER PIN,1/4" x 1 1/2"
4шт.
20
811038C2
CLAMP
rockshaft
4шт.
21
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
8шт.
22
492-11062
BEARING WASHER,5/8"
8шт.
23
429-1010
NUT,5/8"-11, G8
8шт.
24
219-87
LUBE NIPPLE,1/4" - 28 NPTF
4шт.
26
1973010C1
RETAINER
spring
2шт.
30
103069A2
PIN
pivot
2шт.
31
231-41124
LOCK NUT,1 1/2"-6, GB
hex, self locking, 1-1/2 inch NC
2шт.
32
131-1419
NUT,1 1/2"-6, Thin
hex, thin, 1-1/2 inch NC
2шт.
33
413-1216
BOLT,Hex, 3/4" - 10 x 1", Gr 5
BOLT hex, 3/4 NC x 1 inch
2шт.
34
492-11075
LOCK WASHER,3/4"
3/4"
2шт.
35
107918A1
TUBE,434, 162 mm Length
AXLE wing frame
2шт.
36
219-87
LUBE NIPPLE,1/4" - 28 NPTF
2шт.
37
107921A2
TUBE
spacing
2шт.
38
453012R1
BEARING CUP
tapered roller
2шт.
39
8050528
ROLLER BEARING
tapered roller
2шт.
40
103066A1
WASHER,38.9mm ID x 53.98mm OD x 4mm Thk
spacer
2шт.
41
96131C91
SPINDLE
ASSEMBLY, repair, welds to axle assembly, service replacement
4шт.
