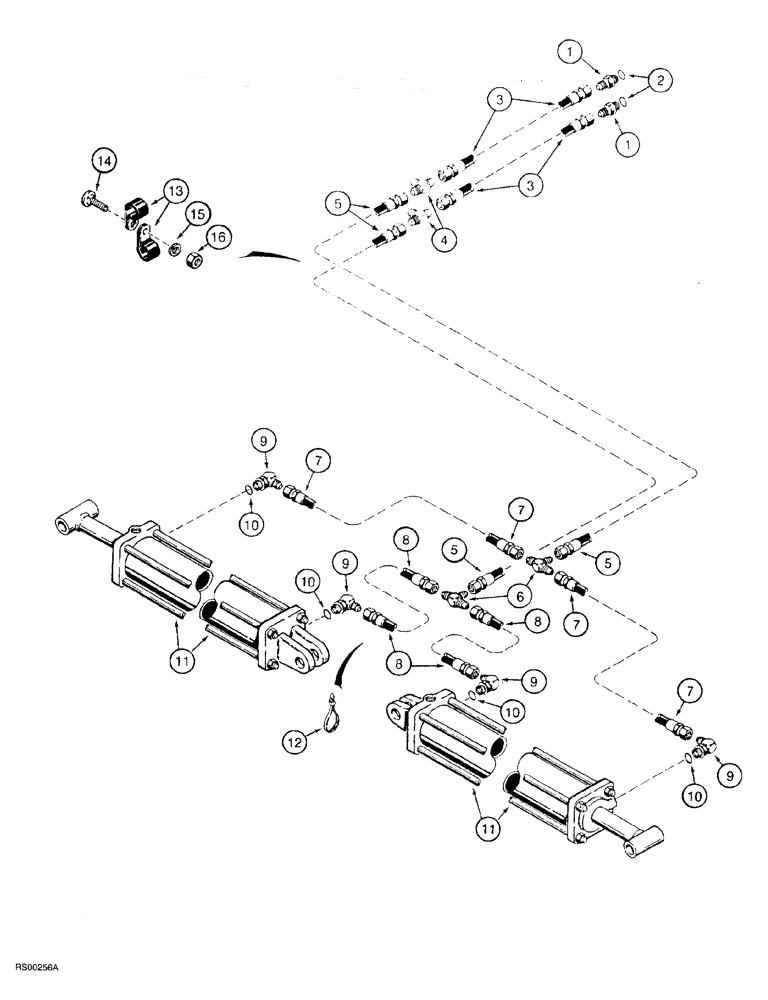

Запчасти Case IH 5600 (8-016) - WING LIFT HYDRAULIC CIRCUIT, LEVEL LIFT MODELS, VERTICAL FOLD, 35 FOOT THROUGH 41 FOOT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

129765C2

HYDRAULIC HOSE

200 inch (5080 mm) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

2шт.

5

1284369C1

HYDRAULIC HOSE

130 inch (3300 mm) long

2шт.

6

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

2шт.

7

129908C1

HYDRAULIC HOSE

55 inch (1397 mm) long

2шт.

8

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

2шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

4шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

224795C92

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke (Iowa Industrial Hydraulics)(See Fig. 8-66)

2шт.

11

810662C91

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke (Prince)(See Fig. 8-68)

2шт.

12

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.

13

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P-type, 7/16 inch ID

1шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.
