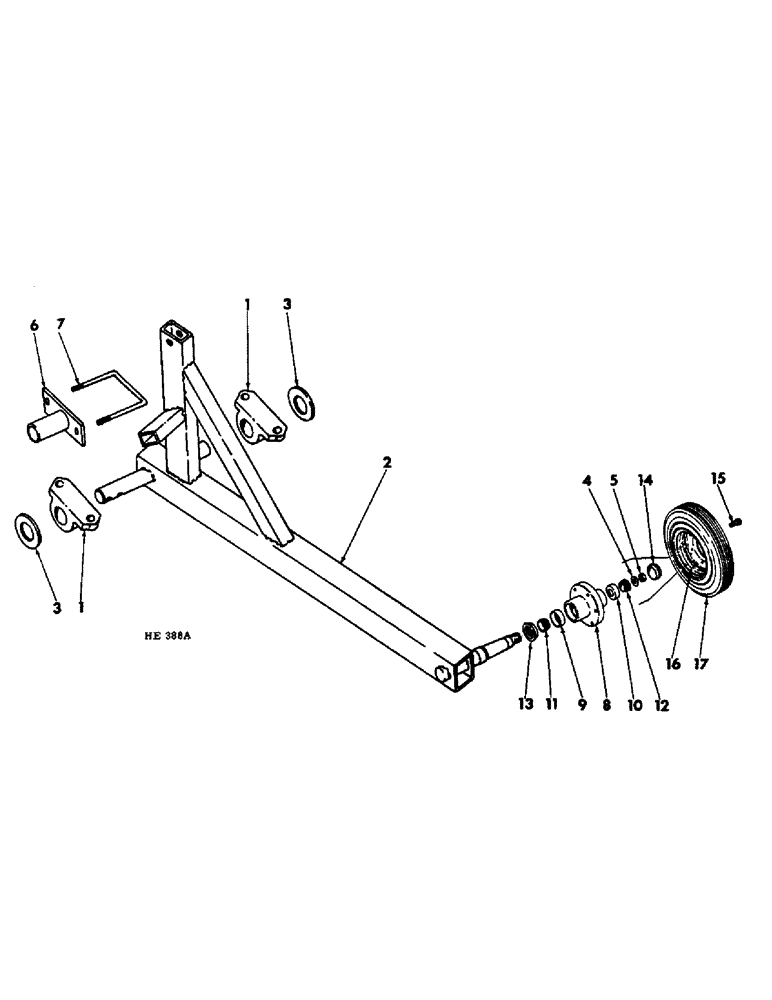

Запчасти Case IH 55 (F-11) - WING FRAME AXLE, 22 FOOT BUILT PRIOR TO AUGUST, 1973

1

597346R1

BEARING CARRIER

axle hanger bracket

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

2

AXLE ASSY, wing frame LH, 1967 season, order 1-598908R1, axle assy, 1-598905R1, stop assy, 1-598903R1, U-bolt, 2-120378, nut & 2-120384, washer

1шт.

2

598908R1

AXLE ASSY, wing frame LH, 1968 season and since

1шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

4шт.

2

AXLE ASSY, wing frame RH, 1967 season, order 1-598909R1, axle assy, 1-598905R1, stop assy, 1-598903R1, U-bolt, 2-120378, nut & 2-120384, washer

1шт.

2

598909R1

AXLE ASSY, wing frame RH, 1968 season and since

1шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

4шт.

3

22811R1

WASHER

2.031 x 2.750 x .067

4шт.

4

23071R1

WASHER

.906 x 2.000 x .164

2шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex-sltd-pln

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

6

598905R1

STOP ASSY, axle, 1968 season and since

2шт.

7

598903R1

U-BOLT, stop, 1968 season and since

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

606468R11

HUB

ASSY, wheel, includes 1-663558R1, cup and 1-651817R1, cup

2шт.

9

663558R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

10

651817R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

2шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

2шт.

13

606556R91

OIL SEAL

SEAL ASSY, oil

2шт.

14

663906R1

CAP

wheel hub

2шт.

15

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

12шт.

16

622192R91

WHEEL

15 x 5 KB

2шт.

17

TIRE AND TUBE, 7.60-15 6 ply 1-1 implement rib tread

2шт.
