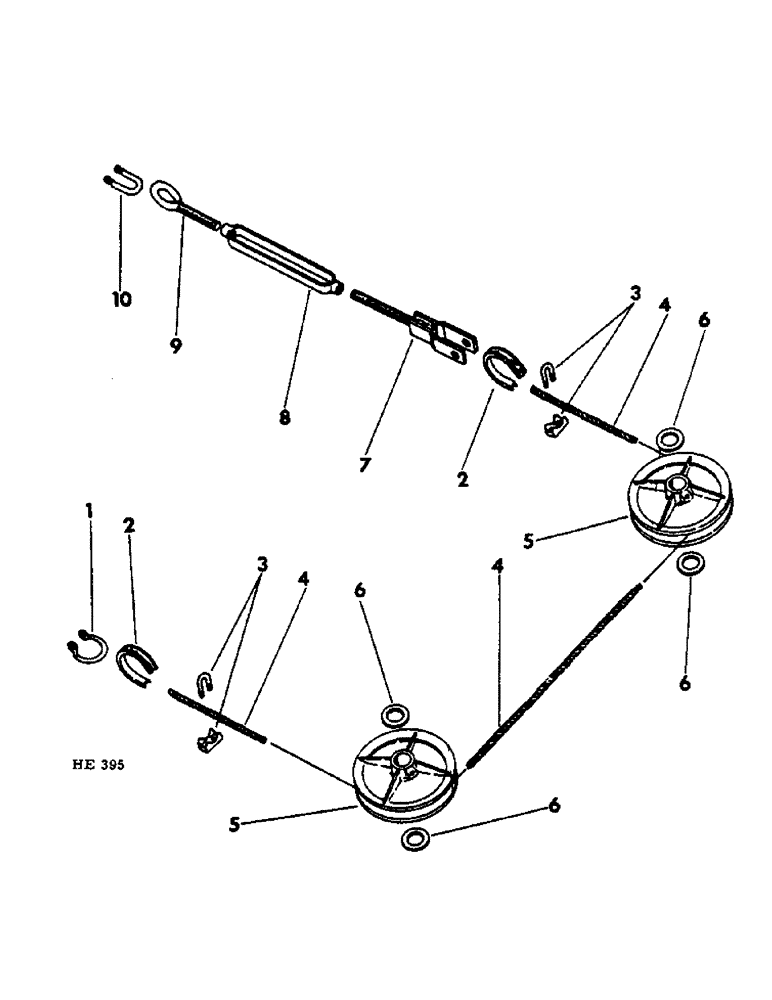

Запчасти Case IH 55 (F-10) - WING WHEEL LIFT PARTS, 22 FOOT BUILT PRIOR TO AUGUST, 1973

1

605824R91

SHACKLE

cable anchor

2шт.

2

597462R1

CUP

THIMBLE, lift cable

4шт.

3

605827R91

CLIP

CLAMP, lift cable

12шт.

4

597363R1

CABLE, lift, 22 ft & 25 ft machine

2шт.

4

597364R2

CABLE

lift, 31 foot machine

2шт.

5

605657R1

PULLEY

lift cable

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

4шт.

6

608085R1

WASHER

1.406 x 2.000 x .054

8шт.

7

605833R91

CLEVIS

ROD ASSY, front lift cable

2шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

8

M73714

BUCKLE

TURNBUCKLE, 5/8

2шт.

9

597365R1

BOLT

lift cable rear eye

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

10

597366R1

CLEVIS, lift cable rear

2шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.
