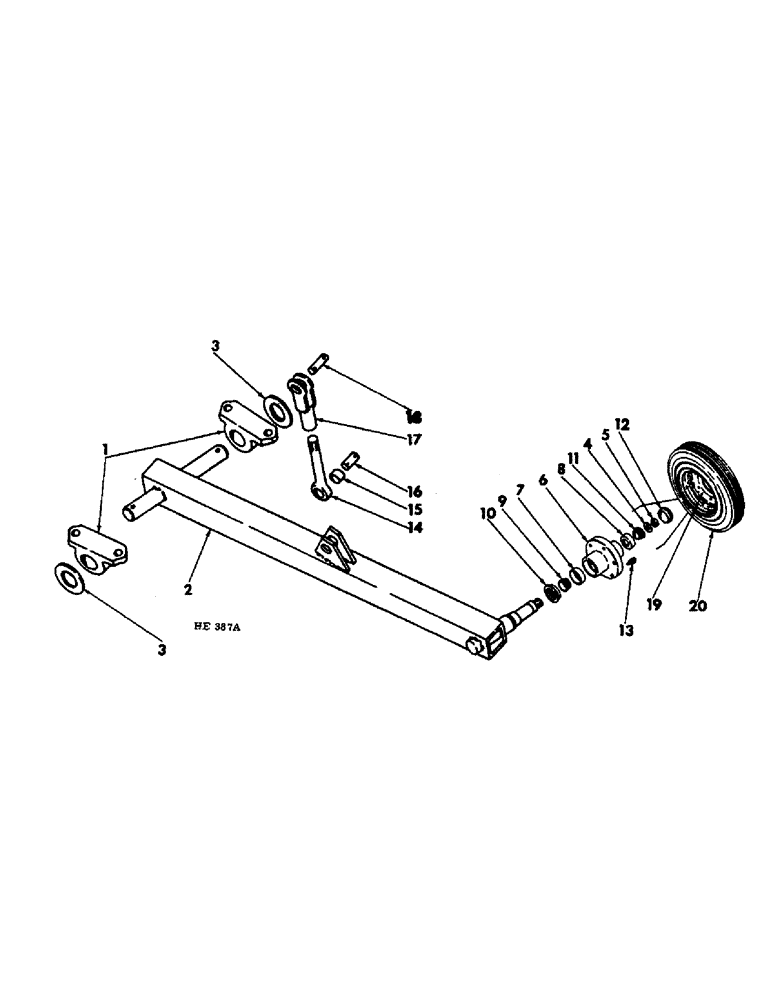

Запчасти Case IH 55 (F-08) - MAIN FRAME WXLE, 22 FOOT MACHINE BUILT PRIOR TO AUGUST, 1973

1

597346R1

BEARING CARRIER

axle support

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8-11 x 1-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

2

597347R1

AXLE ASSY, main frame LH, 22 foot

1шт.

2

597383R1

AXLE ASSY, main frame LH, 25 & 31 foot

1шт.

2

597348R1

AXLE ASSY, main frame RH, 22 foot

1шт.

2

597384R1

AXLE ASSY, main frame RH, 25 & 31 foot

1шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

4шт.

3

22811R1

WASHER

2.031 x 2.750 x .067

4шт.

4

23071R1

WASHER

.906 x 2.000 x .164

2шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex-sltd-pln

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

6

606468R11

HUB

ASSY, wheel, includes 1-663558R1, cup and 1-651817R1, cup

2шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

2шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

2шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

10

606556R91

OIL SEAL

SEAL ASSY, oil

2шт.

11

663558R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

12

663906R1

CAP

wheel hub

2шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

12шт.

14

597354R1

BOLT, axle lift link eye, regular clearance shank

2шт.

14

598857R1

BOLT, axle lift link eye, high clearance shank

2шт.

15

597355R1

BUSHING

eyebolt

2шт.

16

597356R1

PIN

eyebolt

2шт.

119198

COTTER PIN,3/8" x 2 1/2"

PIN SPLIT (COTTER), 3/8" x 2 1/2"

2шт.

17

591536R1

YOKE

lift link

2шт.

18

591537R2

PIN

yoke

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

19

622192R91

WHEEL

15 x 5 KB, 22 ft machine

2шт.

19

598999R1

RIM

WHEEL, 15 x 10 lb, 2 used 25 foot & 31 foot machine

1шт.

20

TIRE AND TUBE, 7.60-15 6 ply 1-1 implement rib tread, 22 foot machine

2шт.

20

TIRE, 11 L-15 12 ply 1-1 tubeless, 2 used 25 foot & 31 foot machine

2шт.

387897R91

VALVE STEM

VALVE, TR415 tubeless tire

2шт.
