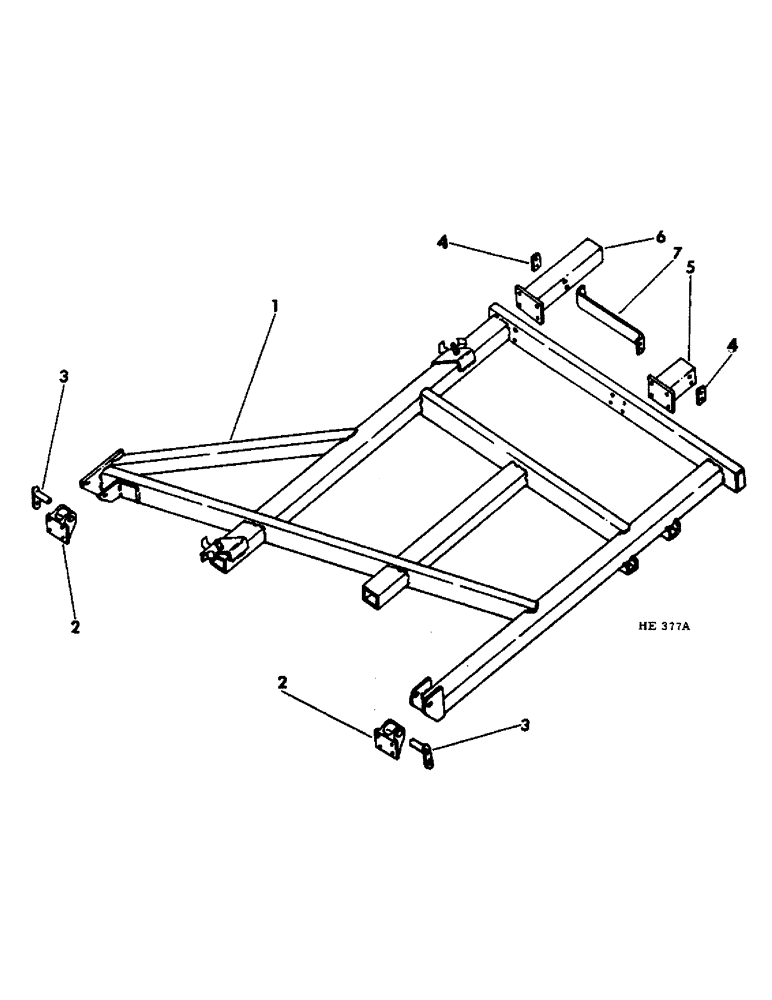

Запчасти Case IH 55 (F-06) - WING FRAME AND EXTENSIONS, 22 FOOT PRIOR TO AUGUST, 1973 SEASON

1

597266R1

FRAME ASSY, wing LH 7 foot

1шт.

1

597267R1

FRAME ASSY, wing RH 7 foot, shown

1шт.

2

597291R1

BRACKET

wing frame hinge

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

3

598462R1

PIN

ASSY, hinge bracket

4шт.

156480R1

SLEEVE

BUSHING, bracket pin

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

469668R1

WASHER

.406 x .750 x .054

4шт.

4

608339R1

BLOCK

BAR, extension clamping

2шт.

5

608331R91

EXTENSION

ASSY, frame short

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 x 3-1/4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

608332R92

EXTENSION

ASSY, frame long

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8-11 x 3-1/4 carriage

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

7

608338R1

STRAP

extension connecting

1шт.

18728R1

BOLT, 5/8-11 x 6 type 1 crg Short NK, 5/8"-11 x 6", G2

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
