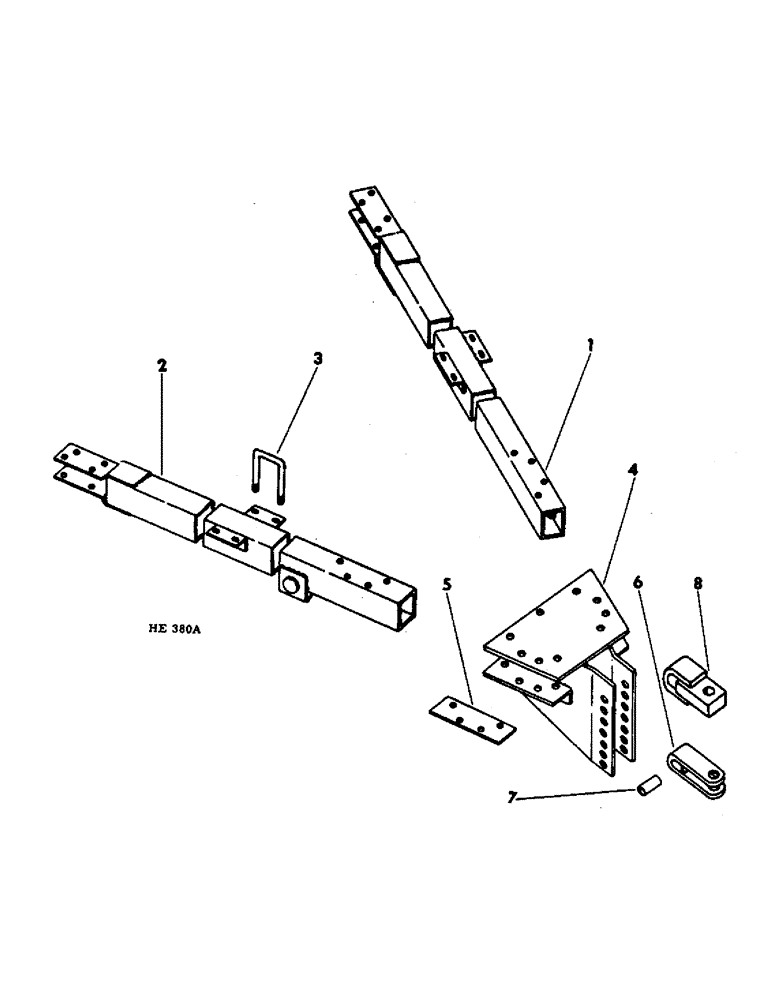

Запчасти Case IH 55 (F-05) - TRACTOR HITCH, 25 FOOT AND 31 FOOT MACHINES BUILT WITH IDENTIFICATION PLATE C1111 OR C1121

1

597301R1

TUBE ASSY, hitch LH

1шт.

2

597302R1

TUBE ASSY, hitch RH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4-10 x 6 hex-hd

8шт.

280954

NUT,3/4"-10, G5

8шт.

3

597308R1

BOLT

U-BOLT, hitch tube clamping

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

578274R1

WASHER

.656 x 1.000 x .105

8шт.

4

597316R1

HITCH ASSY

1шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

3/4-10 x 8 hex-hd

8шт.

280954

NUT,3/4"-10, G5

8шт.

5

597323R1

BAR, hitch shim

1шт.

6

597324R1

CLEVIS

ASSY, hitch, regular

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd-dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

7

597326R1

SPACER

hitch clevis

1шт.

8

605866R91

TOW BAR

CLEVIS ASSY, heavy duty hitch, special, for use when tractor equipped w/hitch pin over 1-1/2 inch dia. to 1-3/4 inch dia.

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd-dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.
