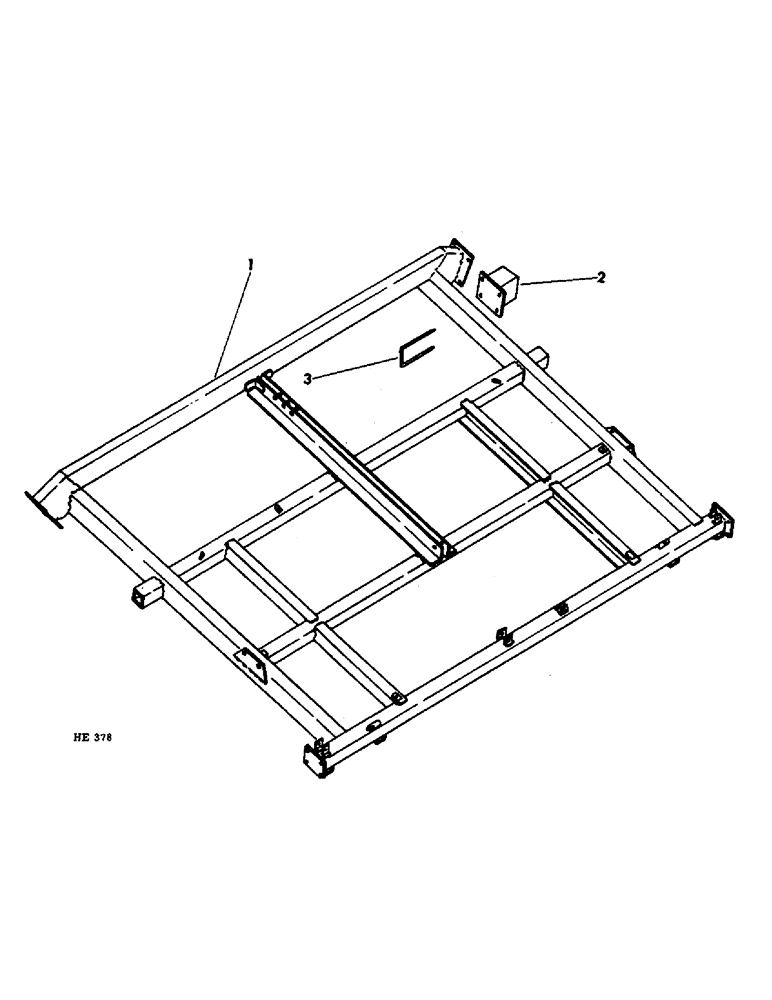

Запчасти Case IH 55 (F-03) - MAIN FRAME, 25 FOOT AND 31 FOOT MACHINES BUILT WITH IDENTIFICATION PLATE C111 OR C1121

1

FRAME ASSY, main 11 foot, prior to the 1968 season, order 1-598520R3, frame, 2-598494R1, shaft, 4-597307R1, U-bolt, 8-124589, nut & 8-121574, washer

1шт.

1

598520R3

FRAME ASSY, main 11 foot, 1968 season and since

1шт.

2

598494R1

SHAFT ASSY, stub

2шт.

3

597307R1

BOLT,U, 5/8" - 11 x 4.31"

U-BOLT, stub shaft

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
