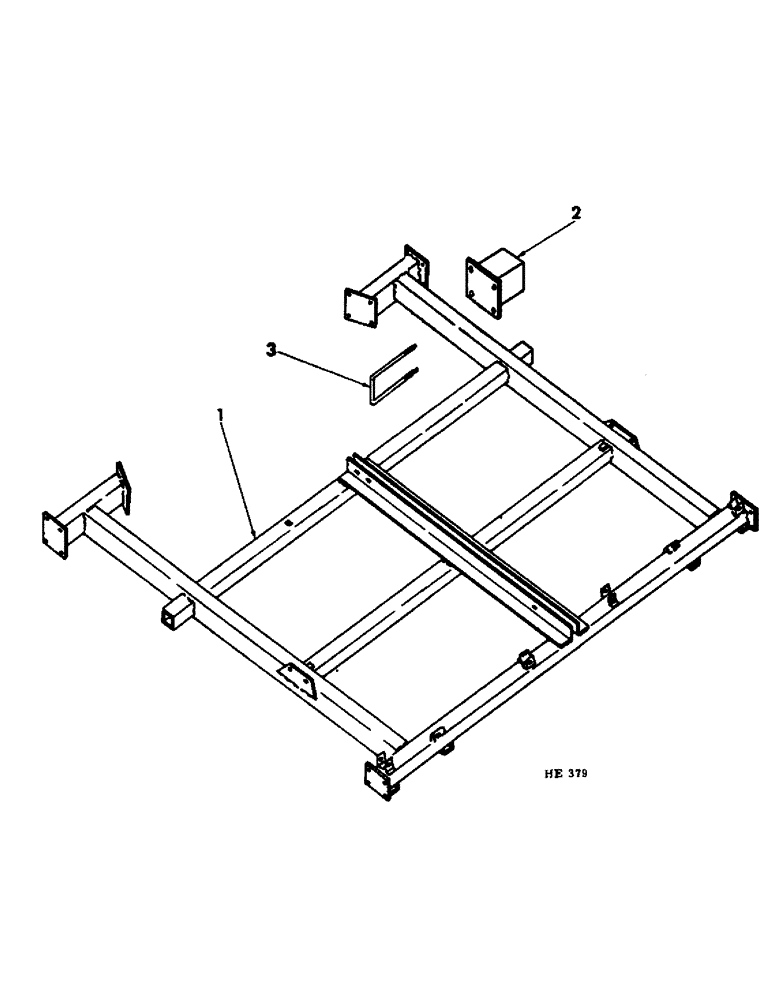

Запчасти Case IH 55 (F-02) - MAIN FRAME, 22 FOOT MACHINE, BUILT PRIOR TO AUGUST, 1973 SEASON

1

FRAME ASSY, main 8 foot, prior to the 1968 season, order 1-598519R1, frame assy, 2-598494R1, shaft assy, 4-597307R1, U-bolt, 8-124589, nut and 8-121574, lockwasher

1шт.

1

598519R1

FRAME ASSY, main 8 foot, 1968 season and prior to August, 1973 season

1шт.

2

598494R1

SHAFT ASSY, stud

2шт.

3

597307R1

BOLT,U, 5/8" - 11 x 4.31"

U-BOLT, shaft

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
