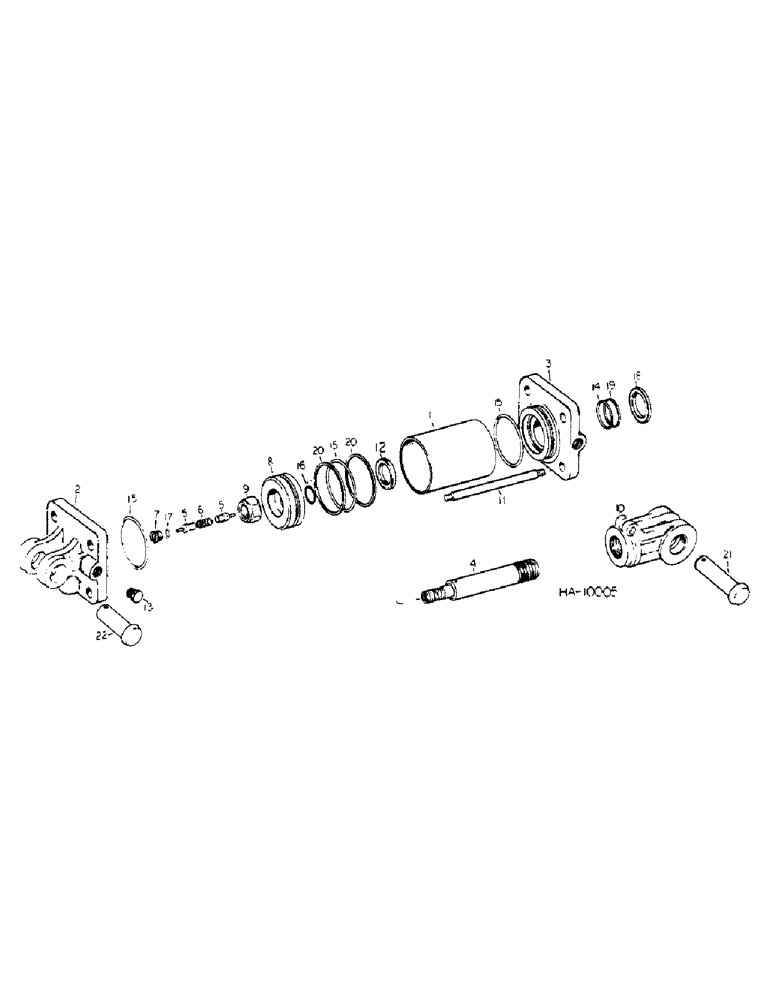

Запчасти Case IH 55 (E-27) - SLAVE HYDRAULIC CYLINDER, RECOMMENDED HYDRAULICS, MODEL C1131, JUNE, 1976 AND SINCE

810184C91

CYLINDER

CYL ASSY, 3.75 x 8 D.A. hyd, opt to use 813528C91, cyl

1шт.

87423766R

REMAN-HYD CYLINDER

1шт.

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

1

811121C1

TUBE,3.75" ID, 4.25" OD

cylinder body

1шт.

2

811122C1

CLEVIS

cylinder base

1шт.

3

811124C1

END

cylinder

1шт.

4

811131C1

ROD

cylinder piston

1шт.

5

812604C1

VALVE

piston rod poppet

1шт.

6

812628C1

SPRING

poppet valve

1шт.

7

812629C1

SEAT

poppet valve

1шт.

8

811132C1

PISTON

cylinder

1шт.

9

24568R1

NUT,1"-14, GB

1-14 hex lock

1шт.

10

812266C1

CLEVIS

rod end

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

811133C1

ROD

cylinder tie

4шт.

425-110

5/8-18 hex

8шт.

12

811114C1

COLLAR

piston rod

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

13

NOT USED THIS APPLICATION

1шт.

14

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1.375 x 1.500 x .125

1шт.

15

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

3.375 x 3.750 x .188

3шт.

16

NOT USED THIS APPLICATION

1шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, poppet valve

1шт.

18

SEAL, wiper oil, not serviced separately, for service order 1-811120C91 kit

1шт.

19

WASHER, piston rod O-ring back-up, not serviced separately, for service order 1-811120C91 kit

1шт.

20

WASHER, piston rod O-ring back-up, not serviced separately, for service order 1-811120C91 kit

1шт.

21

812171C1

PIN

rod clevis

1шт.

591107R1

COTTER PIN

qa cotter

1шт.

22

811134C1

PIN

base clevis

1шт.

591107R1

COTTER PIN

qa cotter

1шт.

811120C91

SEAL KIT

hyd cyl seal, consists of ref nos 14 thru 20

1шт.
