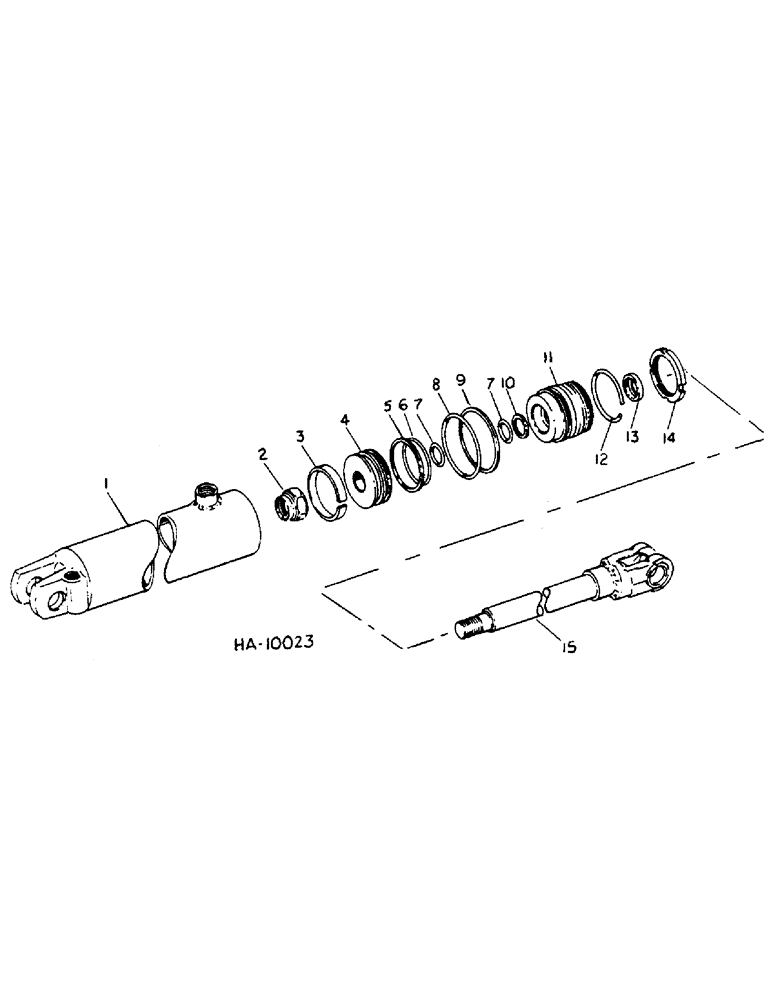

Запчасти Case IH 55 (E-26) - SLAVE HYDRAULIC CYLINDER, MODEL C1131, JUNE, 1976 AND SINCE, RECOMMENDED HYDRAULICS

813528C91

CYLINDER

CYL ASSY, 3.75 x 8 D.A. wing frame, opt to use 1-810184C91, cyl

1шт.

1

812296C1

BODY, cylinder

1шт.

2

26076R1

LOCK NUT,1 1/8"-12, GB

NUT, 1-1/8-12 hex-lock

1шт.

3

FELT, cylinder piston, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

4

812299C1

PISTON

cylinder

1шт.

5

WASHER, back-up O-ring piston, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

6

285724R1

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

3.375 x 3.625 x .125

1шт.

7

343907R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

1.375 x 1.625 x .125

2шт.

8

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3.50 x 3.750 x .125

1шт.

9

WASHER, cyl end O-ring back-up, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

10

WASHER, cylinder end bearing, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

11

812297C1

END

cylinder bearing

1шт.

12

RING, bearing end retaining, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

13

SEAL, bearing end, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

14

812298C1

PLATE

bearing end

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4-20 x 3/4 hex-hd flgd

2шт.

15

812121C1

ROD

cylinder piston

1шт.

812300C91

SEAL KIT

hydraulic cylinder seal service, consists of ref nos 3, 5 thru 10, 12 and 13

1шт.
