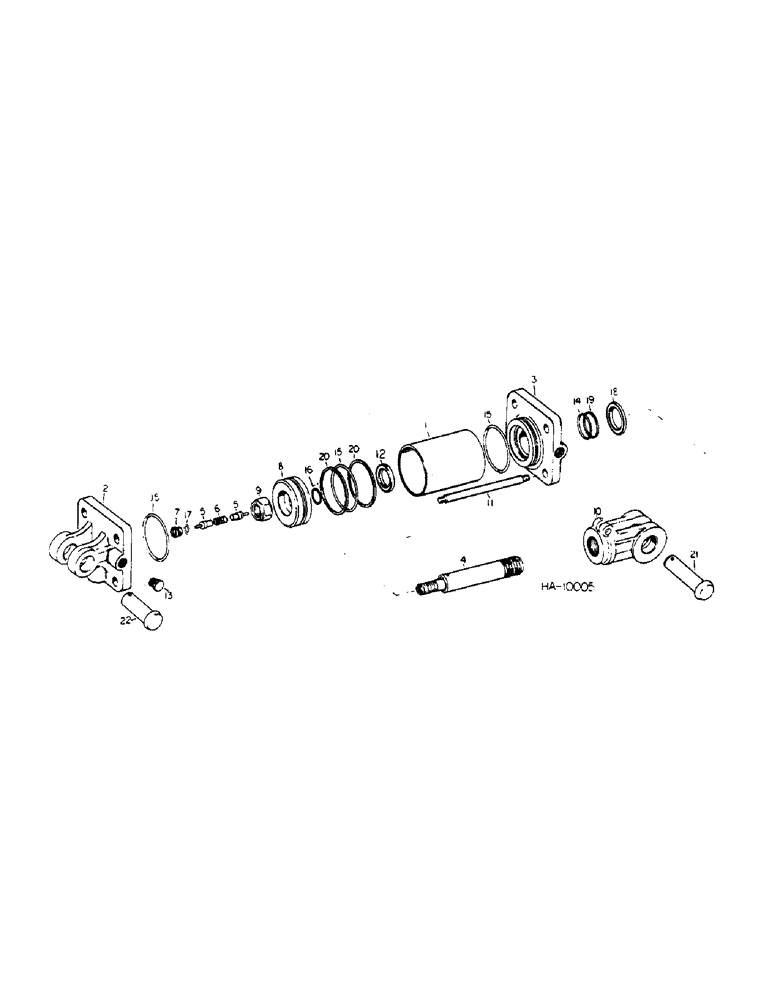

Запчасти Case IH 55 (E-25) - SLAVE HYDRAULIC CYLINDER, RECOMMENDED HYDRAULICS, MODEL C1131, JUNE, 1976 AND SINCE

810183C91

CYLINDER

CYL ASSY, 4 x 8 D.A. hyd, opt to use 1-813527C91, cyl

1шт.

1

811101C1

TUBE,4" ID, 4.5" OD, 4" Length

cylinder body

1шт.

2

812701C1

CLEVIS

cylinder base

1шт.

3

810100C1

END, cylinder

1шт.

4

811131C1

ROD

cylinder piston

1шт.

5

812604C1

VALVE

piston rod poppet

2шт.

6

812628C1

SPRING

poppet valve

1шт.

7

812629C1

SEAT

poppet valve

1шт.

8

812688C1

PISTON

cylinder

1шт.

9

24568R1

NUT,1"-14, GB

1-14 hex lock

1шт.

10

812266C1

CLEVIS

rod end

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

811133C1

ROD

cylinder tie

4шт.

121358

YOKE

5/8-18 hex

8шт.

12

811114C1

COLLAR

piston rod

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

13

NOT USED THIS APPLICATION

1шт.

14

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1.375 x 1.625 x .125

1шт.

15

22287R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

3.625 x 4.000 x .188

3шт.

16

NOT USED THIS APPLICATION

1шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, poppet valve

1шт.

18

SEAL, wiper oil, not serviced separately, for service order 1-810105C91 kit

1шт.

19

WASHER, piston rod O-ring back-up, not serviced separately, for service order 1-810105C91 kit

1шт.

20

WASHER, piston O-ring back-up, not serviced separately, for service order 1-810105C91 kit

1шт.

21

812171C1

PIN

rod clevis

1шт.

591107R1

COTTER PIN

q.a. cotter

1шт.

22

811134C1

PIN

base clevis

1шт.

591107R1

COTTER PIN

q.a. cotter

1шт.

810105C91

SEAL KIT

hyd cyl seal, consists of ref nos 14 thru 20

1шт.
