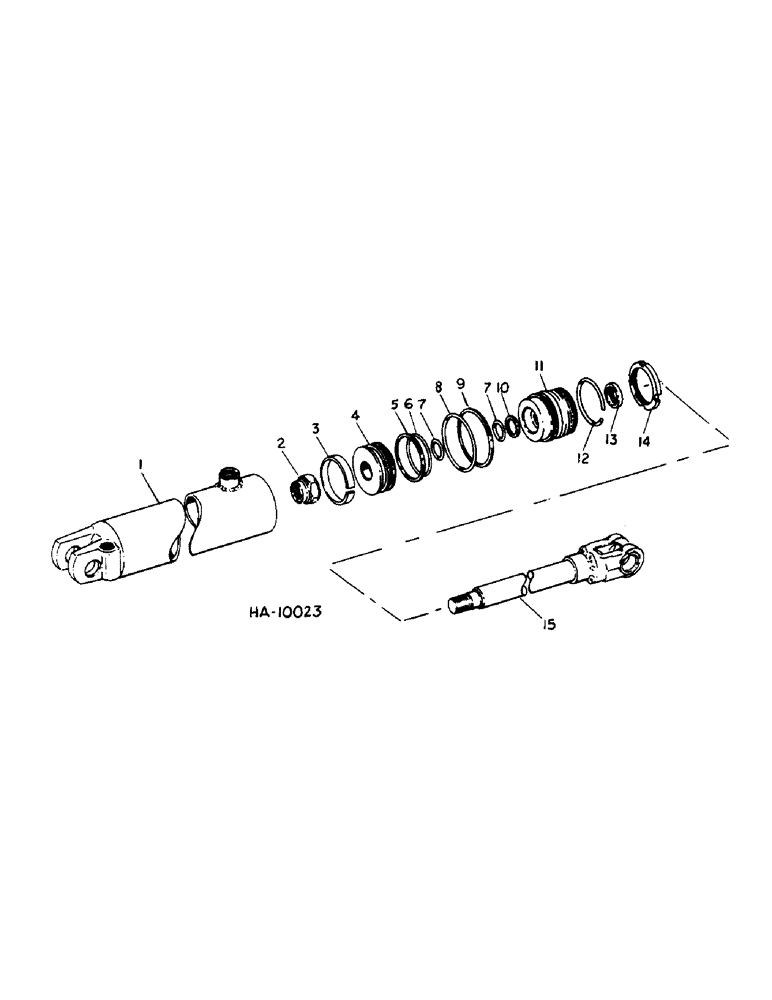

Запчасти Case IH 55 (E-24) - SLAVE HYDRAULIC CYLINDER, MODEL C1131, JUNE, 1976 AND SINCE, RECOMMENED HYDRAULICS

813527C91

CYLINDER

CYL ASSY, 4.00 x 8 D.A. main frame, opt to use 1-810183C91, cyl

1шт.

1

812034C1

BODY

cylinder

1шт.

2

26076R1

LOCK NUT,1 1/8"-12, GB

NUT, 1-1/8-12 hex lock

1шт.

3

FELT, cylinder piston, not serviced separately, for service order 1-812295C91, seal repair kit

1шт.

4

812122C1

PISTON

cylinder

1шт.

5

WASHER, back-up O-ring piston, not serviced separately, for service order 1-812295C91, seal repair kit

1шт.

6

343941R1

O-RING,3.609" ID x 0.139" Width

3.625 x 3.875 x .125

1шт.

7

343907R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

1.375 x 1.625 x .125

2шт.

8

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3.750 x 4.000 x .125

1шт.

9

WASHER, bearing rod back-up, not serviced separately, for service order 1-812295C91, seal repair kit

1шт.

10

WASHER, cyl end O-ring back-up, not serviced separately, for service order 1-812295C91, seal repair kit

1шт.

11

812035C1

END

cylinder bearing

1шт.

12

RING, bearing and retaining, not serviced separately, for service order 1-812295C91, seal repair kit

1шт.

13

SEAL, bearing end, not serviced separately, for service order 1-812295C91, seal repair kit

1шт.

14

812120C1

PLATE

bearing end

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4-20 x 3/4 hex-hd flgd

2шт.

15

812121C1

ROD

cylinder piston

1шт.

812295C91

SEAL KIT

hydraulic cylinder seal service, consists of ref nos. 3, 5 thru 10, 12 and 13

1шт.
