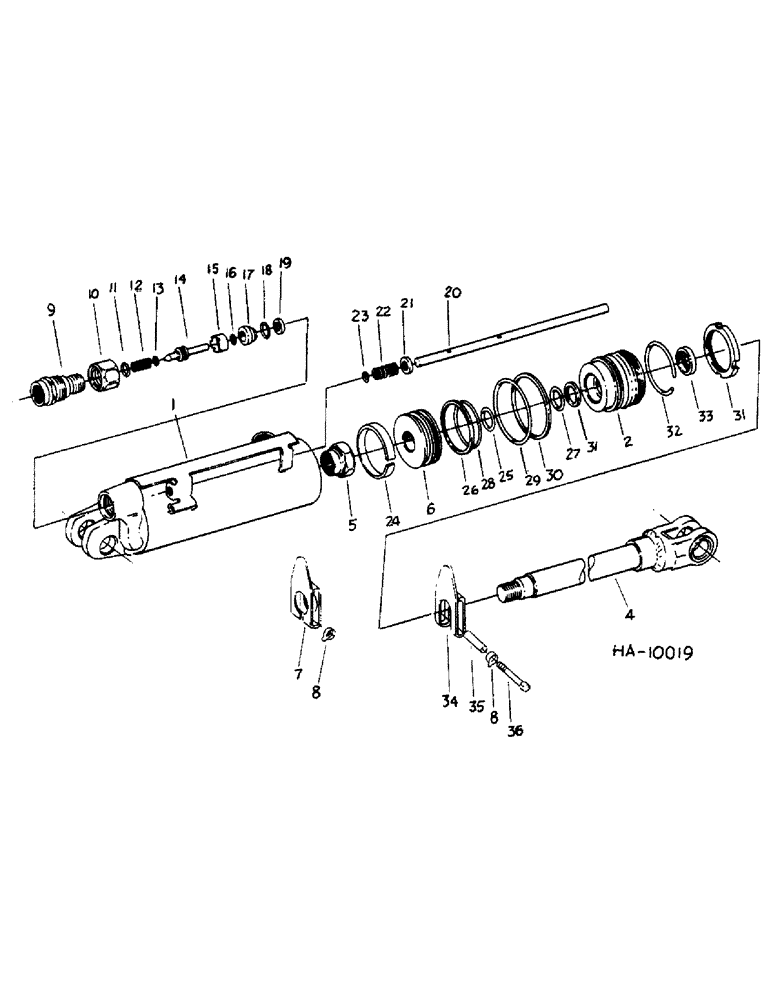

Запчасти Case IH 55 (E-22) - MASTER HYDRAULIC CYLINDER, MACHINE BUILT JUNE, 1976 AND SINCE AND WITH IDENTIFICATION PLATE C1131

813526C91

CYLINDER

CYL ASSY, 4.25 x 8 D.A. hyd master

1шт.

1

812016C1

BODY, cylinder

1шт.

2

812017C1

END

cylinder bearing

1шт.

3

812018C1

PLATE

bearing end

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4-20 x 3/4 hex-hd flgd

2шт.

4

812026C1

ROD

cylinder piston

1шт.

5

26076R1

LOCK NUT,1 1/8"-12, GB

NUT, 1-1/8-12 hex lock

1шт.

6

812027C1

PISTON

cylinder

1шт.

7

812028C1

STOP

piston rod

1шт.

181651

SHIELD

BOLT, 3/8-24 x 2-3/4 hex-hd

1шт.

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/4-24 hex-lock

1шт.

22655R1

WASHER

.406 x .812 x .065

1шт.

8

813015C1

LOCK WASHER

hex-lock

1шт.

9

813057C1

FITTING

stroke control

1шт.

10

813016C1

NUT

stroke control fitting

1шт.

11

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

.875 x 1.062 x .093

1шт.

12

813078C1

SPRING

plunger

1шт.

13

O-RING, stroke control plunger, not serviced separately, for service order 1-812030C91, seal repair kit

1шт.

14

813079C1

PLUNGER

stroke control

1шт.

15

813088C1

SPACER

plunger

1шт.

16

O-RING, plunger retainer, not serviced separately, for service order 1-812030C91, seal repair kit

1шт.

17

813105C1

RETAINER

plunger

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

.625 x .812 x .094

1шт.

19

SEAL, stroke control plunger, not serviced separately, for service order 1-812030C91, seal repair kit

1шт.

20

812029C1

ROD

stroke control push

1шт.

17183R1

LOCK PIN,Sl Spring, 5/32" x 5/8"

PIN, 5/32" x 5/8", Slotted

2шт.

21

WASHER, push rod spring back-up, not serviced separately, order service kit, 812030C91

1шт.

22

813107C1

SPRING

push rod

1шт.

23

23408R1

WASHER

.469 x .750 x .054

1шт.

24

FELT, cylinder piston, not serviced separately, for service order 1-812030C91, seal repair kit

1шт.

25

343909R1

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1.50 x 1.750 x .125

1шт.

26

WASHER, back-up O-ring piston, not serviced separately, for service order 1-812030C91, seal repair kit

1шт.

27

22288R1

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

1.50 x 1.875 x .187

1шт.

28

259246R1

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

3.875 x 4.125 x .125

1шт.

29

468339R1

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

4.00 x 4.250 x .125

1шт.

30

WASHER, cylinder end bearing, not serviced separately, for service order 1-812030C91, seal repair kit

1шт.

31

WASHER, back-up, not serviced separately, for service order 1-812030C91, seal repair kit

1шт.

32

RING, bearing end retaining, not serviced separately, for service order 1-812030C91, seal repair kit

1шт.

33

58122C1

WIPER SEAL

wiper oil

1шт.

34

NOT USED THIS APPLICATION

1шт.

35

NOT USED THIS APPLICATION

1шт.

36

NOT USED THIS APPLICATION

1шт.

812030C91

SEAL KIT

hydraulic cylinder seal service, consists of ref nos 11, 13, 16 thru 19, 21, 24 thru 33

1шт.
