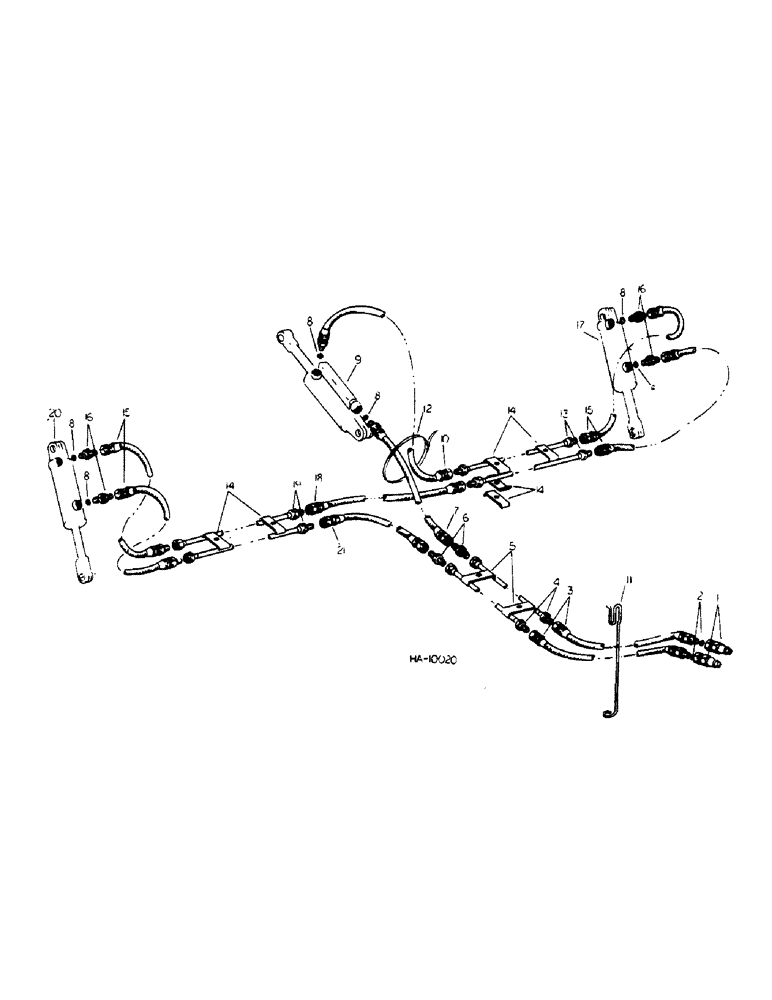

Запчасти Case IH 55 (E-20) - DEPTH CONTROL HYDRAULIC UNIT, MACHINE BUILT JUNE, 1976 AND SINCE AND WITH IDENTIFICATION PLATE C1131

1

395149R1

QUICK MALE COUPLING

COUPLER, hose male, opt to use 544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male, opt to use 395149R1, coupler, recommended hydraulic parts

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

male coupler, recommended hydraulic parts

2шт.

3

599679R1

HOSE

hydraulic front, 1/2 x 60 in

2шт.

4

813607C1

TUBE,0.5" OD, 60" Length

ASSY, hydraulic front

2шт.

5

614323R2

CLAMP

hydraulic tube

4шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

3шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

6

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared

2шт.

7

813608C1

HOSE

master cyl hyd pressure, 3/8 x 26 in

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

master cyl pressure hose

6шт.

9

813526C91

CYLINDER

CYL ASSY, 4.25 x 8 D.A. master hyd, recommended hydraulic parts, for components refer to depth control master hyd cylinder

1шт.

24581R1

PIN

1 x 3-1/2 std-hd-dld type 5

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

10

813611C1

HOSE

slave cyl pressure LH, 3/8 x 45 in

1шт.

11

651793R2

SUPPORT

hydraulic hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

12

816502C1

STRAP

hose tie

1шт.

13

813530C1

TUBE

ASSY, slave cyl hyd LH

2шт.

14

614323R2

CLAMP

hydraulic tube

6шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

15

813609C1

HOSE

slave cyl hyd LH, 3/8 x 33 in

4шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 hyd 37 deg flared tube short swivel

4шт.

17

813527C91

CYLINDER

CYL ASSY, 4.00 x 8 D.A. main hyd slave, opt to use 810183C91, hyd cyl

1шт.

17

810183C91

CYLINDER

CYL ASSY, 4.00 x 8 D.A. main hyd slave, opt to use 813527C91, hyd cyl, recommended hydraulic parts, for components refer to slave hyd cyl

1шт.

24581R1

PIN

1 x 3-1/2 std-hd-dld type 5

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

PIN, 1/4 x 1-1/3 cotter

2шт.

18

813610C1

HOSE

slave cyl LH to RH, 3/8 x 50 in

1шт.

19

813529C1

TUBE

ASSY, slave cyl hydraulic RH

2шт.

20

813528C91

CYLINDER

CYL ASSY, 3.75 x 8 D.A. wing hyd slave, opt to use 810184C91, hyd cyl

1шт.

20

87423766R

REMAN-HYD CYLINDER

3.75 x 8

1шт.

20

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

20

810184C91

CYLINDER

CYL ASSY, 3.75 x 8 D.A. wing hyd slave, opt to use 813528C91, hyd cyl, for components refer to wing frame slave hyd cyl

1шт.

20

87423766R

REMAN-HYD CYLINDER

3.75 x 8

1шт.

20

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

24581R1

PIN

1 x 3-1/2 std-hd-dld type 5

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

21

813610C1

HOSE

slave cylinder return hydraulic

1шт.
