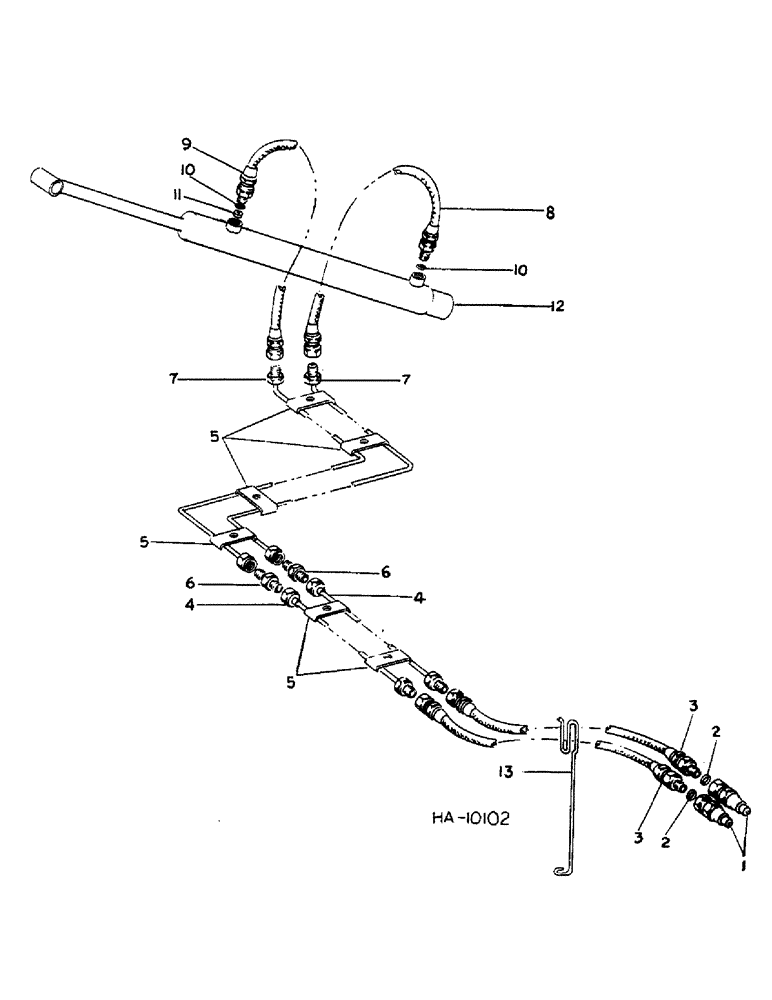

Запчасти Case IH 55 (E-18) - WING LIFT HYDRAULICS, MACHINE BUILT JUNE,1976 AND SINCE AND WITH IDENTIFICATION PLATE C1131

1

395149R1

QUICK MALE COUPLING

COUPLER, hose male, opt to use 544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male, opt to use 395149R1, coupler, recommended hydraulic parts

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

male coupler, recommended hydraulic parts

2шт.

3

599679R1

HOSE

1/2 x 60 in. hydraulic front

2шт.

4

813514C1

TUBE,0.375" OD, 60" Length

ASSY, hydraulic front

2шт.

5

614323R2

CLAMP

hydraulic tube

6шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

6

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg flared

2шт.

7

813531C1

TUBE,0.375" OD, 78, 35" Length

ASSY, hydraulic wing lift

2шт.

8

813534C1

HOSE

wing lift cyl return, 3/8 x 45 in

1шт.

9

813604C1

HOSE

wing lift cyl pressure, 3/8 x 30 in

1шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

wing lift hyd hose

2шт.

11

811912C1

WASHER

flow retarded disk

1шт.

12

811888C91

CYLINDER

ASSY, wing lift hydraulic, for components refer to wing lift hyd cylinder

1шт.

13

651793R2

SUPPORT

hydraulic hose

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.
