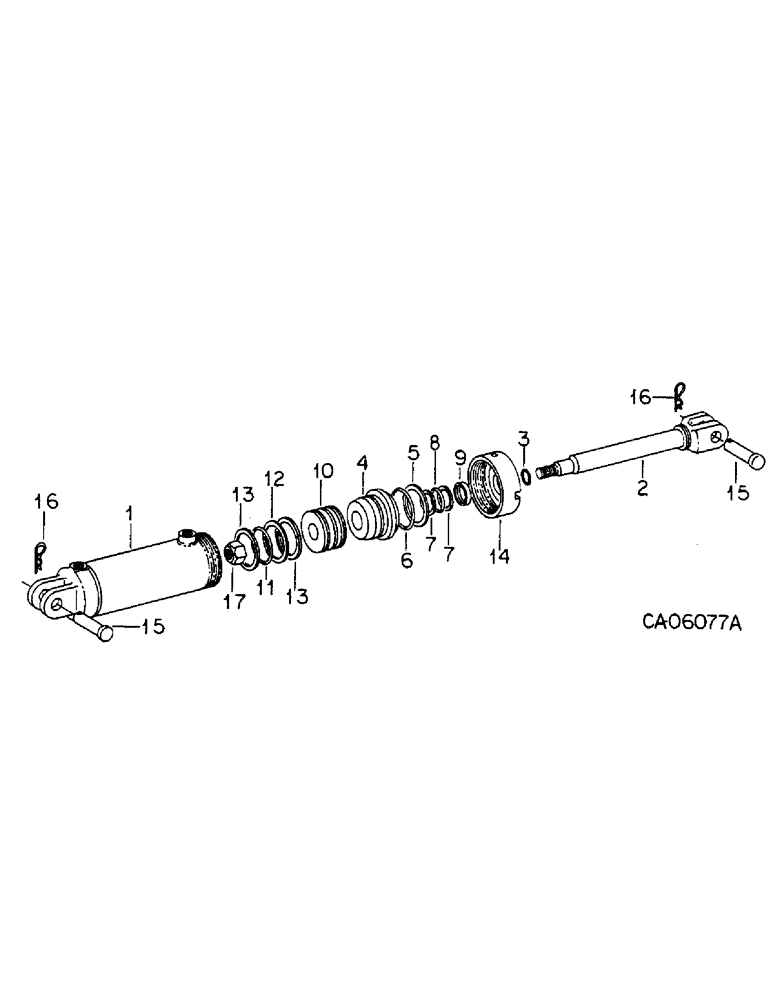

Запчасти Case IH 55 (E-16) - MASTER HYDRAULIC CYLINDER, BUILT PRIOR TO JUNE, 1976 AND WITH IDENTIFICATION PLATE C1111 AND C1121

388688R95

CYLINDER

ASSY, rockshaft lift hydraulic, 4 x 8 in. double acting

1шт.

1343711C1R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, ASSY, double acting, Reman for New PN 388688R95

1шт.

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

388689R12

BODY ASSY, hydraulic cylinder

1шт.

2

388691R31

ROD

ASSY, piston

1шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8, piston rod static

1шт.

4

388693R1

END

HEAD, cylinder front

1шт.

5

381107R1

BACK-UP RING

WASHER, front head backup

1шт.

6

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

3-5/8 x 4 x 3/16 front head

1шт.

7

387362R2

BACK-UP RING

WASHER, piston rod backup

2шт.

8

403995R1

RING

quad, piston rod

1шт.

9

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

10

388694R1

PISTON ASSY.

PISTON, hydraulic cylinder

1шт.

11

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

3/1/2 x 3-11/16 x 3/32, piston seal

1шт.

12

381110R1

RING

piston seal

1шт.

13

383006R1

RING

piston bearing

2шт.

14

381111R1

RING

FITTING, retaining

1шт.

15

64560C1

HEADED PIN

PIN, pivot headed

2шт.

16

520175R1

CLIP

PIN, quick attachable cotter

2шт.

17

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 PHC piston rod lock

1шт.

388983R92

KIT

PACKAGE, hyd cyl seal service, consists of ref nos 3, 5 thru 9, 11, 12 and 13

1шт.
