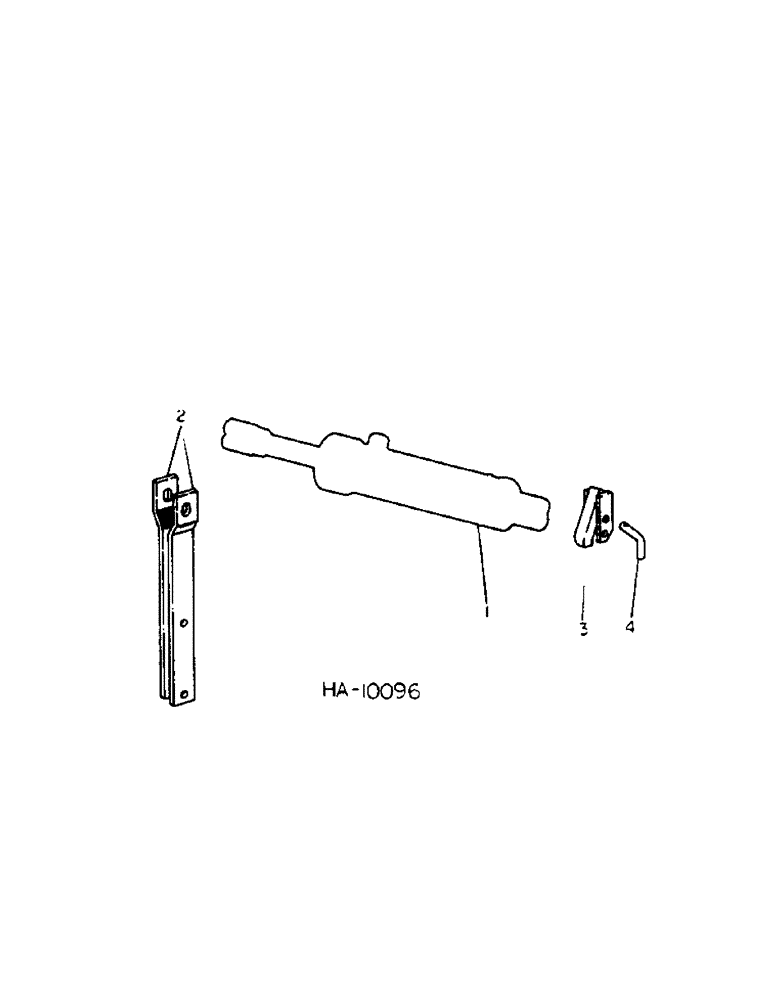

Запчасти Case IH 55 (E-15[A]) - REMOTE CONTROL HYDRAULIC CYLINDER MOUNTING PARTS MACHINE BPT JUN 1976 & W/ID PLATE C111 & C1121

1

388688R95

CYLINDER

remote control hydraulic, recommended hydraulic parts, for components refer to remote control hyd cyl

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, remote control hydraulic, W/ID PLATE C111 & C1121, Reman for New PN 388688R95

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

2

811878C1

STRAP, rockshaft locking

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

3

811032C1

RETAINER

hydraulic cylinder, replaces 526263R1

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

602801R1

PIN

ROD, retainer locking

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.
