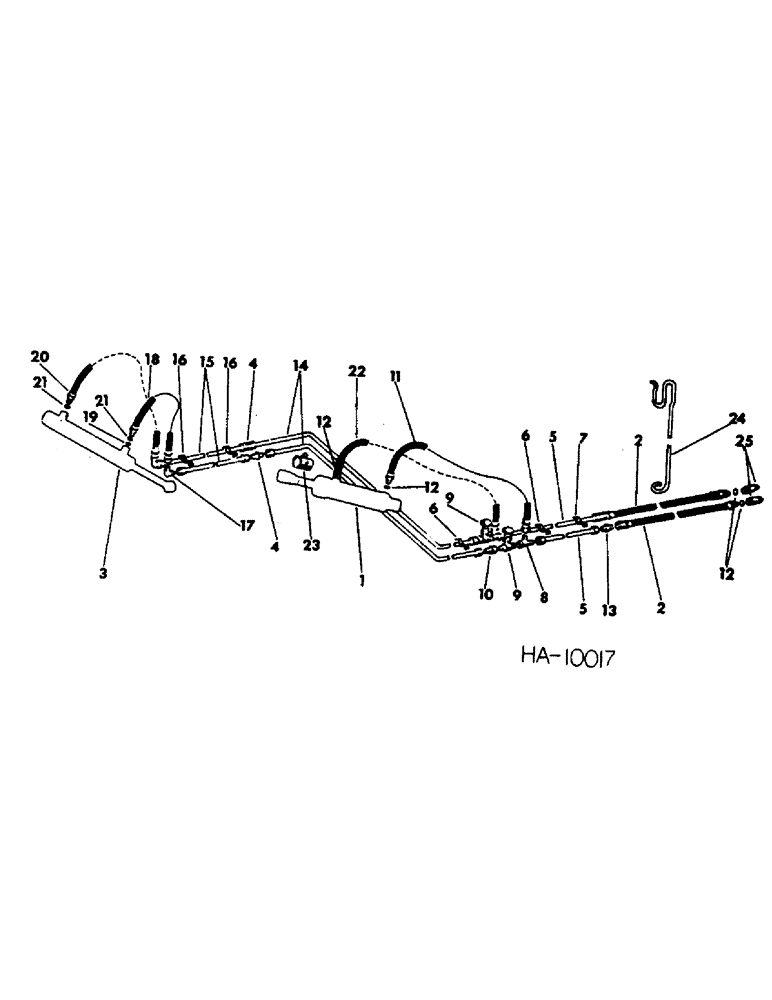

Запчасти Case IH 55 (E-13) - DEPTH CONTROL RECOMMENDED HYDRAULIC, MACHINE W/ HYD. WING LIFT TRACTOR W/ SINGLE HYDRAULIC CONTROL

1

388688R95

CYLINDER

ASSY, 4 x 8 in. double acting hydraulic, rockshaft lift, for components refer to master hydraulic cylinder

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, ASSY, double acting hydraulic, Reman for New PN 388688R95

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

2

599679R1

HOSE

ASSY, 1/2 x 60 in. hydraulic, tractor to machine union, recommended hydraulic parts

2шт.

3

811888C91

CYLINDER

ASSY, wing lift hydraulic, for components refer to slave hyd cylinder

1шт.

4

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2 tube

2шт.

5

811873C11

TUBE, hydraulic front 1" OD, 60" Length

2шт.

6

588322R2

CLAMP, hydraulic tube

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

317054R1

CLAMP

hose

4шт.

8

9403138

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Run

1/2 tube, 90 deg two-way

2шт.

9

675275R91

VALVE

cut-off

2шт.

10

9402748

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, Fem Pipe

CONNECTOR, 1/2 tube

2шт.

11

637300R91

HOSE

rockshaft cyl pressure, 1/2 x 2.5 in, recommended hydraulic parts

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

rockshaft cylinder

4шт.

13

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2 tube

2шт.

14

811874C11

TUBE

hydraulic wing lift front

2шт.

15

811875C11

TUBE,1" OD, 40" Length

hydraulic wing lift rear

2шт.

16

588322R2

CLAMP, hydraulic tube

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21784R1

WASHER

.265 x .500 x .054

3шт.

20600R1

WASHER

.281 x .750 x .105

4шт.

17

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2 tube 90 degree

2шт.

18

811908C91

HOSE, wing lift pressure, 3 8 x 31 5 in

1шт.

19

811912C1

WASHER

retarder disk

1шт.

20

811907C91

HOSE, wing lift return, 3/8 x 42 in

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

wing lift cylinder

2шт.

22

198202H1

HOSE, rockshaft cylinder return

1шт.

23

479853R91

PACKAGE

remote control hydraulic cylinder stroke stop, 1 stop used per hydraulic cyl to obtain desired depth, consists of (1) stop 479849R91, (1) stop 479850R91, (1) stop 643259R91, (1) stop 643260R91

1шт.

23

479849R91

PACKAGE

STOP, remote control hyd cyl 1/2 inch

1шт.

23

643259R91

STOP

remote control hyd cyl 3/4 inch

1шт.

23

479850R91

PACKAGE

STOP, remote control hyd cyl 1 inch

1шт.

23

643260R91

PACKAGE

STOP, remote control hyd cyl 1-1/2 inch

1шт.

23

643261R91

STOP

remote control hyd cyl 3 inch

1шт.

23

643262R91

STOP

remote control hyd cyl 3-1/2 inch

1шт.

23

959999R91

STOP

remote control hyd cyl 5 inch

1шт.

24

651793R2

SUPPORT

hydraulic hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

25

395149R1

QUICK MALE COUPLING

COUPLER, hose male, opt to use 544787R91, coupler

1шт.

25

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male, opt to use 395149R1, coupler

1шт.
