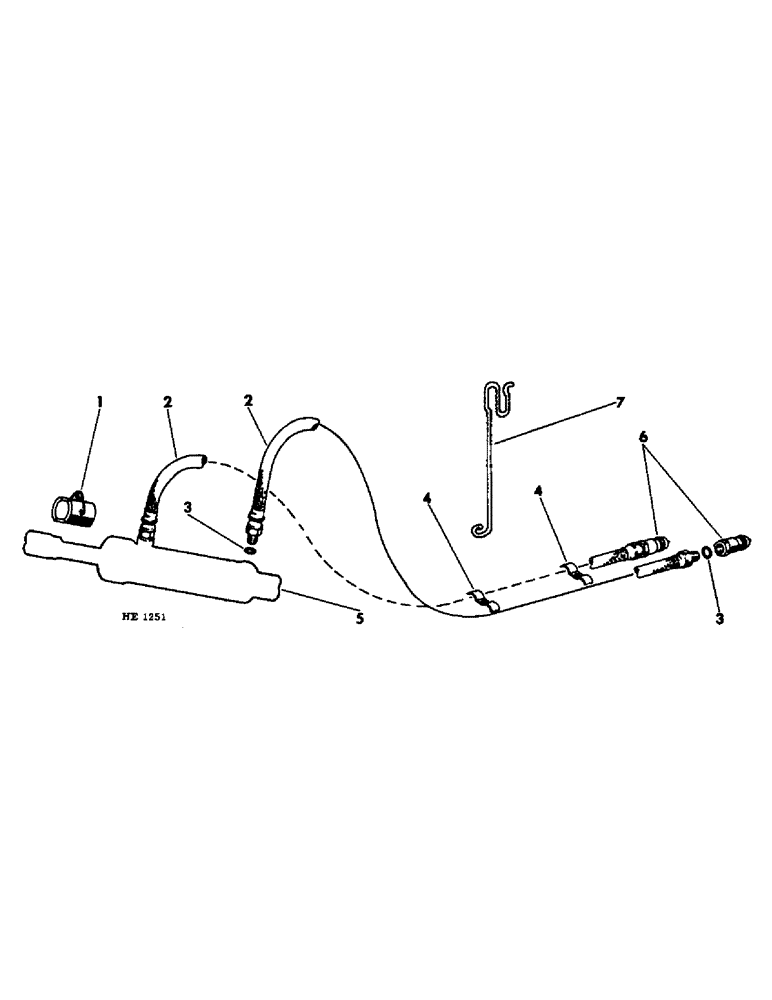

Запчасти Case IH 55 (E-12) - DEPTH CONTROL RECOMMENDED HYDRAULICS, MACHINE WITHOUT HYD. WING LIFT, TRAC. WITH SINGLE HYD. CONTROL

1

479849R91

PACKAGE

STOP, remote control hyd cyl 1/2 inch

1шт.

1

643259R91

STOP

remote control hyd cyl 3/4 inch

1шт.

1

479850R91

PACKAGE

STOP, remote control hyd cyl 1 inch

1шт.

1

643260R91

PACKAGE

STOP, remote control hyd cyl 1-1/2 inch

1шт.

1

643261R91

STOP

remote control hyd cyl 3 inch

1шт.

1

643262R91

STOP

remote control hyd cyl 3-1/2 inch

1шт.

1

959999R91

STOP

remote control hyd cyl 5 inch

1шт.

1

479853R91

PACKAGE

rockshaft lift hydraulic cylinder stroke stop, one stop used per hyd cyl to obtain the desired depth, consists of (1) stop 479849R91, (1) stop 479850R91, (1) stop 643259R91, (1) stop 643260R91

1шт.

2

372570R91

HOSE ASSY.

HOSE, 1/2 x 152 inch hyd cyl

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd cyl hose

4шт.

4

317054R1

CLAMP

hyd cyl hose

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga

2шт.

5

388688R95

CYLINDER

rockshaft lift hydraulic, for components refer to master hyd cyl

1шт.

5

1343711C1R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, rockshaft lift hydraulic, WITH SINGLE HYD. CONTROL, Reman for New PN 388688R95

1шт.

5

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

6

395149R1

QUICK MALE COUPLING

COUPLER, tractor hose male, opt to use 544787R91, coupler

2шт.

6

544787R91

COUPLING, BREAK AWAY

COUPLER, tractor hose male, opt to use 395149R1, coupler

2шт.

7

651793R2

SUPPORT

hydraulic hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.
