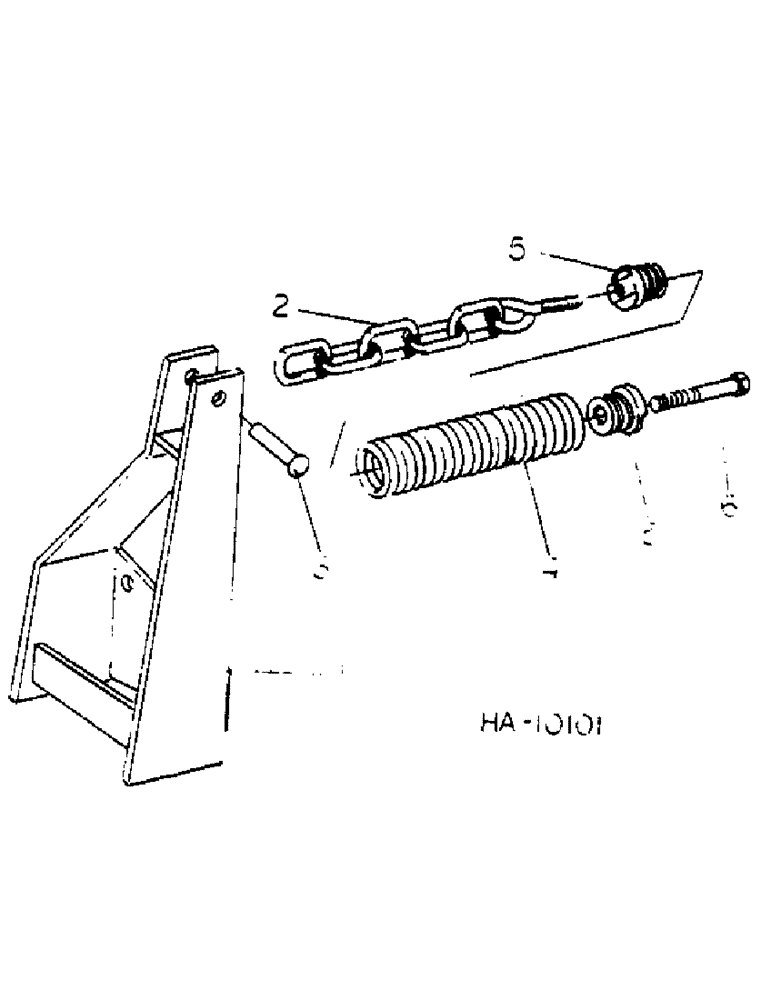

Запчасти Case IH 55 (E-11) - WEIGHT TRANSFER UNIT, MODEL C1131, JUNE, 1976 AND SINCE

1

813561C1

SUPPORT

ASSY, weight transfer

1шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

2

813593C1

CHAIN (AG)

CHAIN ASSY, weight transfer

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

3

22095R1

PIN

3/4 x 3 std-hd-dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

4

811342C1

SPRING

weight transfer

1шт.

5

811338C1

PLUG

spring

2шт.

6

812199C1

BOLT,Hex, 5/8" - 11 x 4"

5/8-11 x 4 hex-hd special

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.
