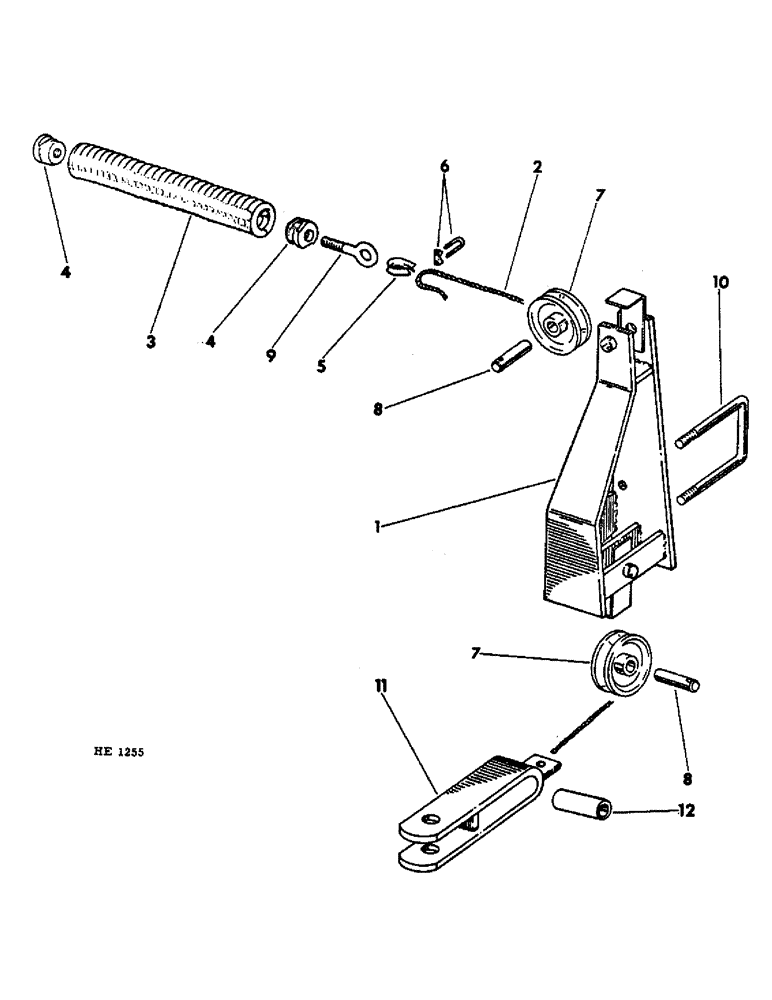

Запчасти Case IH 55 (E-10) - WEIGHT TRANSFER UNIT, MODEL C1121, PRIOR TO JUNE, 1976

1

811833C1

SUPPORT ASSY, WEIGHT TRANSFER

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

2

811243C1

CABLE

weight transfer control

1шт.

3

811342C1

SPRING

weight transfer

1шт.

4

811338C1

PLUG

spring

2шт.

812199C1

BOLT,Hex, 5/8" - 11 x 4"

5/8-11 x 4 hex-hd special

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

5

605931R1

EYE

THIMBLE, cable

2шт.

6

605932R91

CLAMP

cable

4шт.

7

605885R1

PULLEY

weight transfer

2шт.

8

811840C1

PIN, pulley support

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

9

602514R11

BOLT, cable eye

1шт.

REF ITEM 9-P/N S/B 602514R11. PT 6 RETIRED PART. CHECK DEALER LOCATOR. JBEDFORD 8/10/98.

1шт.

10

608528R1

BOLT,U, 5/8" - 11 x 5.75"

U-BOLT, hitch rear support

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

811845C1

CLEVIS ASSY, hitch

1шт.

12

811891C1

SPACER

clevis

1шт.

812672C1

BOLT,1" - 8 x 7"

1-8 x 7 hex-hd dld type 8

1шт.

9849633

NUT,1"-8, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.
