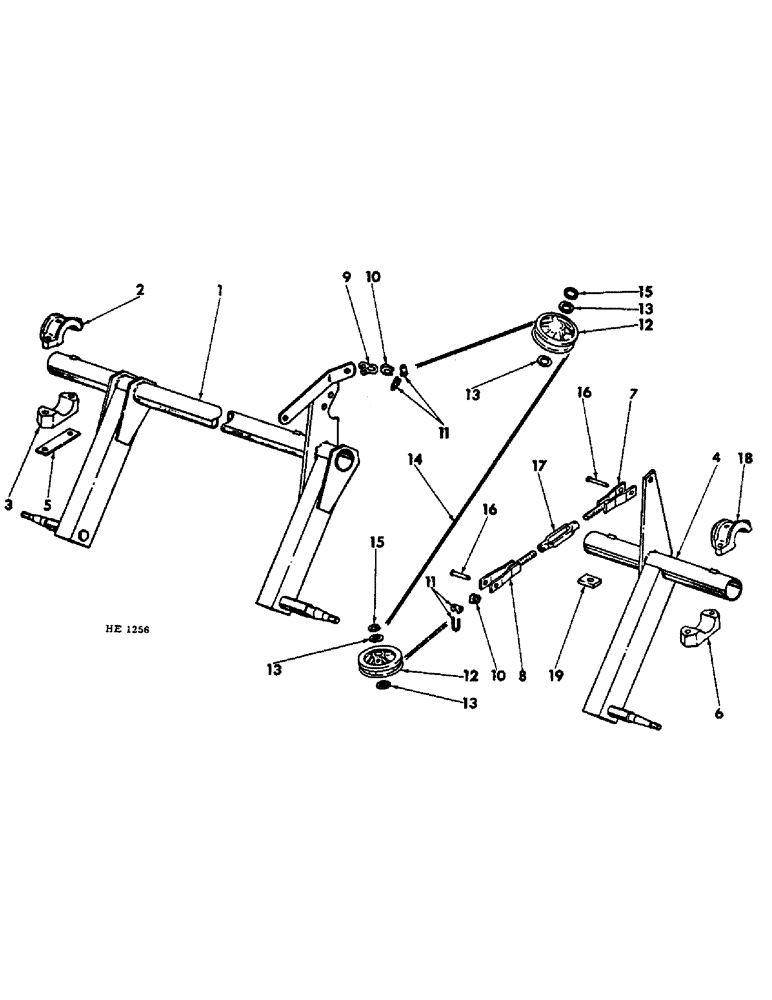

Запчасти Case IH 55 (E-09) - ROCKSHAFT UNIT, BUILT PRIOR TO JUNE, 1976 AND WITH IDENTIFICATION PLATE C111 AND C1121

1

811899C21

ROCKSHAFT ASSY, main frame, 25 inch regular clearance

1шт.

1

811901C21

ROCKSHAFT ASSY, main frame, 32 inch high clearance, includes 1-619373R1, washer, 1-70120D, nut, 1-103387, pin, 1-467750R1, washer, 1-427640, nut and 1-103398, pin

1шт.

619373R1

WASHER

.906 x 2.000 x .164

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex sltd

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

2

605664R1

CAP

rockshaft bearing

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4-10 x 11 hex-hd

2шт.

20800R1

BOLT,Hex, 3/4" - 10 x 14", Gr 5

3/4-10 x 14 hex-hd

2шт.

280954

NUT,3/4"-10, G5

4шт.

3

811856C2

CAP

main frame rockshaft lower

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4-10 x 11 hex-hd

2шт.

20800R1

BOLT,Hex, 3/4" - 10 x 14", Gr 5

3/4-10 x 14 hex-hd

2шт.

280954

NUT,3/4"-10, G5

4шт.

4

811900C11

ROCKSHAFT ASSY, wing frame, 25 inch regular clearance

1шт.

4

811902C11

ROCKSHAFT ASSY, wing frame, 32 inch high clearance, includes 1-467750R1, washer, 1-427640, nut & 1-103398, pin

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

2шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

5

811861C1

BAR

rockshaft spacer

4шт.

6

811856C2

CAP

wing frame rockshaft lower

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4-10 x 11 hex-hd

4шт.

280954

NUT,3/4"-10, G5

4шт.

7

592365R91

ROD

YOKE ASSY, lift cable rear

1шт.

REF#7 L.H. THREADS 11/7/96

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

8

592366R91

ROD

YOKE ASSY, lift cable front

1шт.

REF#8 R.H. THREADS 11/7/96

1шт.

9

605535R91

SHACKLE

ASSY, 1/2 inch anchor

1шт.

10

605826R1

EYE

THIMBLE, 1/2 cable

1шт.

11

605827R91

CLIP

CLAMP ASSY, lift cable

6шт.

12

605657R1

PULLEY

lift cable

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

13

608085R1

WASHER

1.406 x 2.000 x .054

4шт.

14

811818C1

CABLE, rockshaft lift

1шт.

15

659380R1

SNAP RING,#137, Ext

Ring, Snap, , cable pulley, for use prior to 1973 season #137, Ext

2шт.

16

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

2193

TURNBUCKLE

lift cable yoke

1шт.

18

605664R1

CAP

rockshaft bearing

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4-10 x 11 hex-hd

4шт.

280954

NUT,3/4"-10, G5

4шт.

19

811897C1

BAR

wing frame short spacer

1шт.
