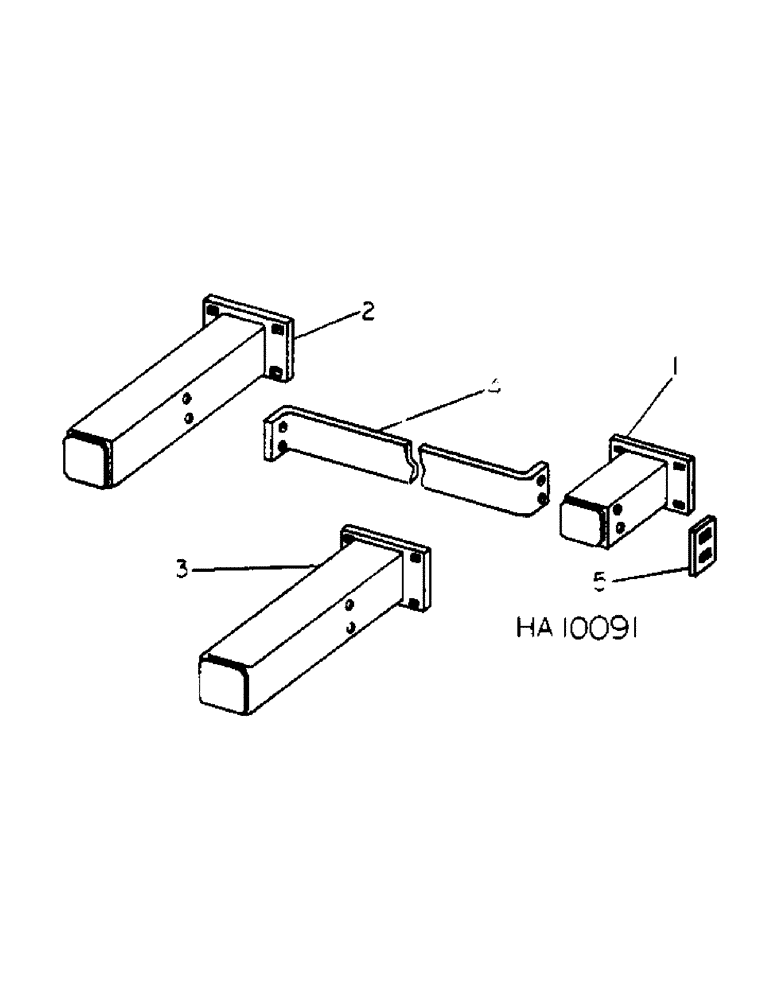

Запчасти Case IH 55 (B-02[A]) - EXTENSIONS, 7 FOOT AND 11 FOOT TWO RANK MODELS

1

608331R91

EXTENSION

ASSY, frame short, not applicable to 7 foot 2 rank machine when gauge wheel is to be mounted on outside of frame, not applicable to 17 foot and 21 foot row corp machines, Serial Range: prior-1972

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 x 3-1/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

608332R92

EXTENSION

ASSY, frame long, machines must be equipped w/short frame extension, not applicable to 17 foot and 21 foot row crop machines

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8-11 x 3-1/4 carriage

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

3

608473R91

EXTENSION

ASSY, frame long, for use on 7 foot 2 rank machine when slide adjusting type gauge wheel is mounted on outside of frame

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8-11 x 3-1/4 carriage

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

4

608338R1

STRAP

extension connecting, machine must be equipped w/608332R92, extension assy long

2шт.

18728R1

BOLT, 5/8-11 x 6 type 1 carriage Short NK, 5/8"-11 x 6", G2

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

608339R1

BLOCK

BAR, extension clamping, machine must be equipped w/608332R92, extension assy long

4шт.
