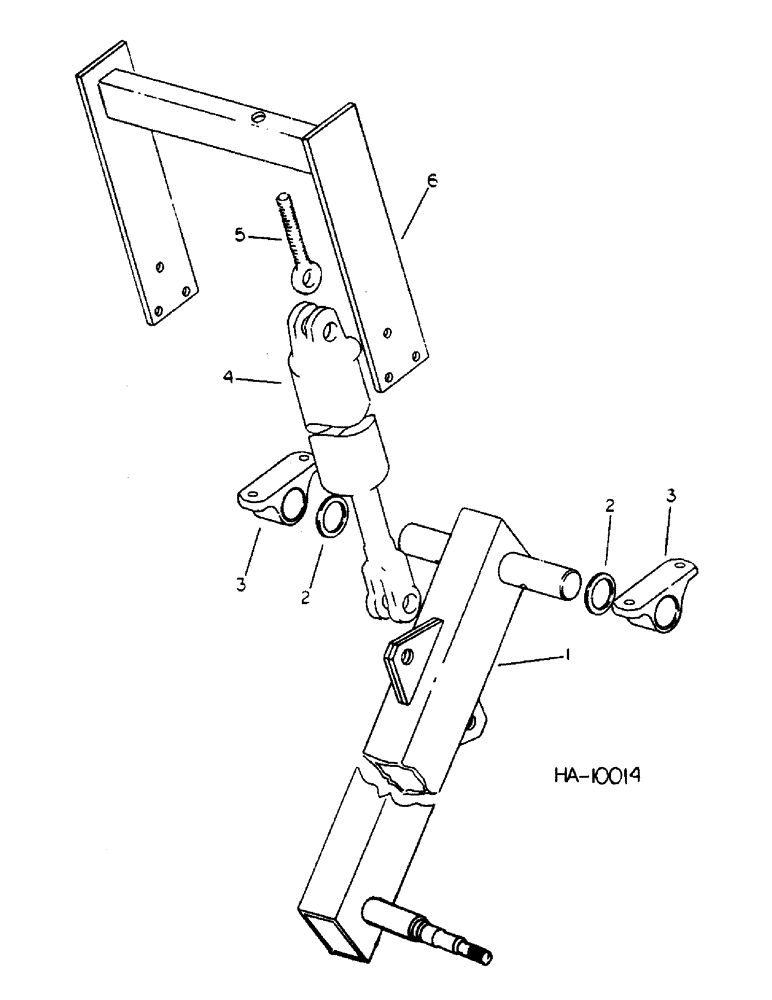

Запчасти Case IH 55 (E-07) - OUTER AXLE, MACHINE BUILT JUNE, 1976 AND SINCE AND WITH IDENTIFICATION PLATE C1131

1

811061C91

AXLE

ASSY, outer, includes 1-467750R1, washer, 1-427640, nut & 1-103398, pin

2шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

4шт.

2

22811R1

WASHER

2.031 x 2.750 x .067

4шт.

3

597346R1

BEARING CARRIER

axle support

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

813527C91

CYLINDER

CYL ASSY, 4.00 x 8 D.A. main frame slave, opt to use 1-810183C91, cyl

1шт.

4

810183C91

CYLINDER

CYL ASSY, 4 x 8 D.A. main frame slave, opt to use 1-813527C91, cyl, for components refer to main frame slave cylinder

1шт.

4

813528C91

CYLINDER

CYL ASSY, 3.75 x 8 D.A. wing frame slave, opt to use 1-810184C91, cyl

1шт.

4

810184C91

CYLINDER

CYL ASSY, 3.75 x 8 D.A. wing frame slave, opt to use 1-813528C91, cyl, for components refer to wing frame slave cylinder

1шт.

4

87423766R

REMAN-HYD CYLINDER

3-3/4 x 8

1шт.

4

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

24581R1

PIN

1 x 3-1/2 std-hd-dld type 5, 2 per cyl

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), , 2 per cyl 1/4" x 1 3/4"

1шт.

5

813200C1

BOLT,7/8" - 9 x 7.50"

slave cylinder eye

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

21715R1

WASHER

.906 x 1.750 x .105

4шт.

6

813605C2

SUPPORT

ASSY, slave cylinder LH mach w/25 in reg clearance shank

1шт.

6

813606C2

SUPPORT

ASSY, slave cylinder RH, shown, mach w/25 in reg clearance shank

1шт.

6

813556C1

SUPPORT

ASSY, slave cylinder LH, mach w/32 in high clearance shank

1шт.

6

813557C1

SUPPORT

ASSY, slave cylinder RH, shown, mach w/32 in high clearance shank

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2-10 hex

12шт.
