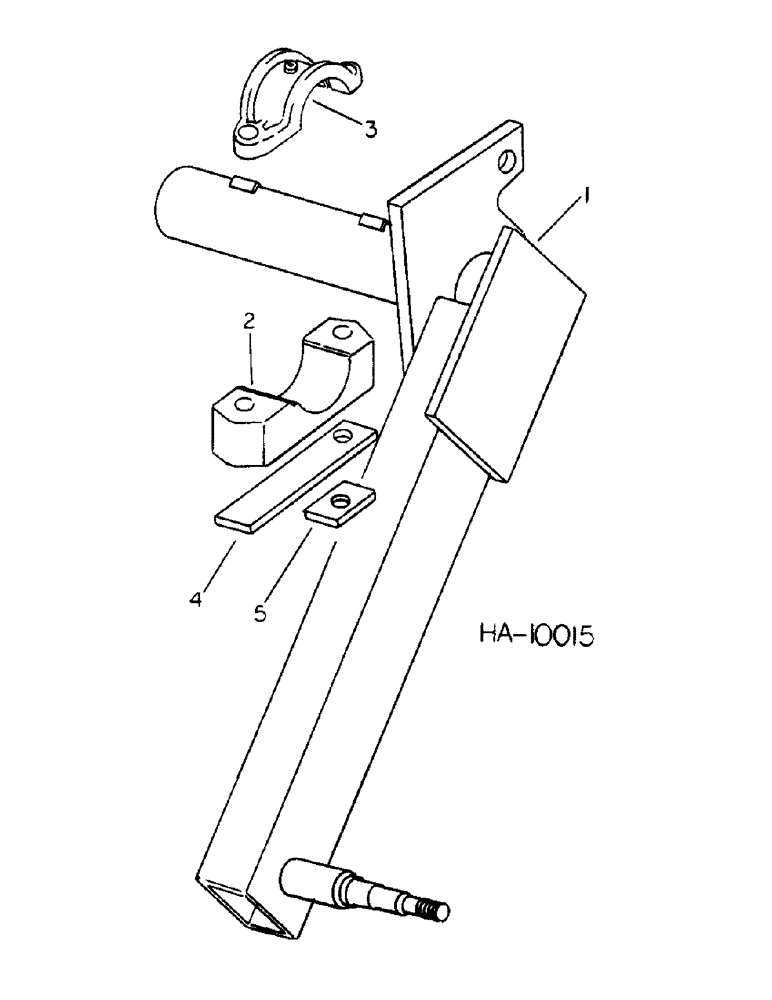

Запчасти Case IH 55 (E-06) - CENTER AXLE, MACHINE BUILT JUNE, 1976 AND SINCE AND WITH IDENTIFICATION PLATE C1131

1

811059C91

AXLE

ASSY, 25 inch regular clearance

1шт.

1

811060C91

AXLE

ASSY, 32 inch high clearance, includes 1-619373R1, washer, 1-70120D, nut & 1-103387, pin

1шт.

2

811856C2

CAP

center axle lower

2шт.

3

605664R1

CAP

center axle upper

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

20800R1

BOLT,Hex, 3/4" - 10 x 14", Gr 5

3/4-10 x 14 hex-hd

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4-10 x 11 hex-hd

2шт.

280954

NUT,3/4"-10, G5

4шт.

4

811861C1

BAR

spacer

2шт.

5

811897C1

BAR

short spacer

2шт.

61907C1

DECAL

PRODUCT GRAPHIC, general warning, English

1шт.

71483C1

PRODUCT GRAPHIC

general warning, French

1шт.

717484C1

PRODUCT GRAPHIC, general warning, Spanish

1шт.

810170C1

PRODUCT GRAPHIC

caution wing frame

2шт.

175311C1

REFLECTOR

RED

3шт.

174732C1

REFLECTOR

amber

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International name, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model disignation, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)

1шт.
